Description
*This product is reaching end-of-life and will soon be discontinued. Visit Zebra 4"x 6" 1500T Thermal Transfer RFID Label - For Industrial Printers for a recommended replacement product.*

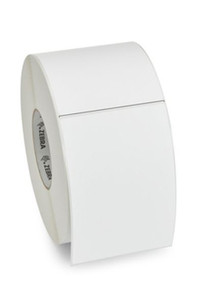

Zebra RFID Label (4"x 6") - for the Zebra R110Xi4, ZE500R, ZT400R, & ZT600R Series RFID Printers
Offering an economical choice for 4" wide labeling applications, these 4"x 6" blank paper labels come standard with the Zebra ZBR4000 inlay and NXP UCODE 8 integrated circuit.
Data Sheet — Zebra RFID Label (4"x 6") - for the Zebra R110Xi4, ZE500R, ZT400R, & ZT600R Series RFID Printers
Need help selecting the right tag? Check out our tag guide.
Why buy this tag?
Designed specifically for customers in need of blank labels for "at home" printing, these 4"x 6" labels perform well when placed on or near challenging materials such as pallets and freights.
Features
- Thermal transfer RFID label with permanent adhesive.
- Z-Perform 1500T material.
- Optimized to be read from nearly any angle.
- Performs well when placed on or near challenging materials (i.e, pallets, freight).
- Best in class read accuracy with overhead readers like Zebra ATR7000.
- 3" ID, 8" OD.
- Pairs well Zebra's 6000 wax or 3200 wax/resin ribbon.
- Typical applications include labeling of case, pallet, freight, and assets.
Compatibility
- Zebra R110Xi4 Series RFID Printers
- Zebra ZE500R Series RFID Printers
- Zebra ZT410 Series RFID Printers
- Zebra ZT420 Series RFID Printers
- Zebra ZT610R Series RFID Printers
- Zebra ZT620R Series RFID Printers
| Product Type: | Tag |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | EPCglobal UHF Class 1 Gen 2v2 (ISO/IEC 18000-63) |
| Operating Frequency: | Global (865-928 MHz) |
| IC Type: | NXP UCODE 8 |
| Memory: | EPC 128 Bits, TID 96 Bits, User 0 Bits |
| EPC Memory Content: | Not guaranteed unique |
| Max Read Distance: | Up to 20 m (65.6 ft)- frequency and surface dependent |
| Applicable Surface Materials: | Non-metallic surfaces including plastic, cardboard, glass, PVC, and rubber |
| MECHANICAL: | |
| Tag Form Factor: | Label tag |
| Tag Materials: | Z-Perform 1500T |
| Recommended Ribbon: | Zebra's 6000 wax or Zebra's 3200 wax/resin |
| Attachment Method: | Permanent adhesive |
| Dimensions: | 101.6 x 152.4 mm (4 x 6 in) |
| Weight: | 2.8 g |
| ENVIRONMENT: | |
| Operating Temperature: | Not published |
