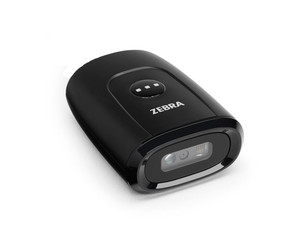

Zebra DS5502-SR Fixed Mount Scanner

SKU:
DS5502-SR40004ZZWW

Zebra

UPC:
Product Type:
Barcode Scanner
ELECTRICAL:

Scanner:
2D Imager
Data Interface:
RS-232, USB
Power Source:
4.75 to 5.25 VDC, 350 to 360 mA RMS
SCAN PERFORMANCE:

Scan Mode:
Presentation Mode and Trigger Mode
Scan Pattern:
Omni-Directional
Sensor Resolution:
1280 x 800 Pixels
Imager Field of View:
Horizontal: 48° , Vertical: 30°
Minimum Print Contrast:
15% Minimum Reflective Difference
1D Decode Capabilities:
All Major 1D Barcodes
2D Decode Capabilities:
PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, and SecurPharm
OCR Capabilities:
OCR-A, OCR-B, MICR, US Currency
Laser Classification:
Circular 525 nm True Green LED
MECHANICAL:

Dimensions:
30 x 56 x 72 mm (1.2 x 2.2 x 2.8 in)
Weight:
0.065 kg (0.14 lbs)
ENVIRONMENT:

Drop Specification:
Withstands Multiple 1.5 m (5 ft) Drops to Concrete
IP Rating:
IP 54
Operating Temperature:
-20° to 50°C (-4° to 122°F)
fbt-product:
3545
fbt-product:
1724
fbt-product:
3763
atc-product:
5005
atc-product:
5008
atc-product:
5009
View Full Description View Items Frequently Bought Together
MSRP: $511.00
$378.00
(You save $133.00 )
Adding to cart… The item has been added

Need a Quote?

Frequently Bought Together

Please choose options for all selected products

  • Choose Options
Specs

Description

Zebra DS5502-SR Corded Fixed Mount Scanner

The Zebra DS5502-SR Corded Fixed Mount Scanner is a compact and versatile scanner that easily incorporates into retail counters, self-service stations, ticketing kiosks, contactless pickup lockers, boarding gates and more. The DS5502-SR can read 1D or 2D barcodes, printed or mobile, even on dimly lit screens. The megapixel sensor in the DS5502-SR delivers a 184% increase in resolution when compared to the previous generation Zebra DS457. The flat face of the DS5502-SR imager can be mounted flush with walls and counters for a clean look, and the standard quarter-inch camera mount on the bottom of the scanner enable the use of an endless amount of third-party mounting accessories. The DS5502-SR supports both RS232 and USB, enabling the DS5502-SR to stay in use as systems migrate from RS232 to USB.

NOTE: The DS5502-SR Scanner is unavailable with UHF RFID technology. This scanner reads 1D and 2D barcodes, but does not have UHF capabilities.

Configuration Options

Additional configuration options are available to meet your needs. Contact us today for more information.

Data Sheet  Zebra DS5502-SR Corded Fixed Mount Scanner

Data Sheet — Zebra DS5502-SR Corded Fixed Mount Scanner

What's included?

If Scanner Only is selected above:

NOTE: USB Cable and 3-in-1 Mount NOT included.

If USB Kit is selected above:

NOTE: Stand NOT included.

If Mount & USB Kit is selected above:

Why buy this scanner?

The Zebra DS5502-SR packs a new and improved scanning sensor into a compact and versatile fixed scanner that can be easily embedded or mounted just about anywhere. The standard camera mount on the bottom of the DS5502-SR enables the use of an endless amount of third party mounting accessories.

Features

  • Designed for 1D/2D intensive applications.
  • Scans any bar code on paper, mobile phones, and computer displays.
  • Designed for small spaces with a near zero footprint.
  • Soft, white illumination and green LED aimer make scanning easy in a wide variety of conditions.
  • A configuration wizard, 123Scan, simplifies the deployment of scanner.
  • New megapixel sensor reads damaged and poorly printed barcodes.
  • Easily takes high quality images of prescriptions, ID cards, checks, and more.
  • Common applications: retail, hospitality, manufacturing, and transportation.

Zebra OneCare Support with Comprehensive Coverage

Zebra OneCare Essential delivers the fully featured comprehensive coverage you need to maximize uptime and value of your Zebra device. This service sets the industry bar for service and support, with features that include coverage for accidental damage and normal wear and tear, technical support during your local business hours, access to software updates, and a 3-day turnaround time on repairs.

NOTE: This service is available for purchase within 30 days of your equipment purchase. Purchase of any Zebra OneCare Support Service voids the included standard warranty, resulting in a coverage of three (3) years total. Contact us today for more detailed information.

Zebra OneCare Support with Comprehensive Coverage

Recommended Accessories

The following accessories are available for the Zebra DS5502-SR Corded Fixed Mount Scanner. Contact us today for more detailed information on these accessories.

Product Type: Barcode Scanner
ELECTRICAL:
Scanner: 2D Imager
Data Interface: RS-232, USB
Power Source: 4.75 to 5.25 VDC, 350 to 360 mA RMS
SCAN PERFORMANCE:
Scan Mode: Presentation Mode and Trigger Mode
Scan Pattern: Omni-Directional
Sensor Resolution: 1280 x 800 Pixels
Imager Field of View: Horizontal: 48° , Vertical: 30°
Minimum Print Contrast: 15% Minimum Reflective Difference
1D Decode Capabilities: All Major 1D Barcodes
2D Decode Capabilities: PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, and SecurPharm
OCR Capabilities: OCR-A, OCR-B, MICR, US Currency
Laser Classification: Circular 525 nm True Green LED
MECHANICAL:
Dimensions: 30 x 56 x 72 mm (1.2 x 2.2 x 2.8 in)
Weight: 0.065 kg (0.14 lbs)
ENVIRONMENT:
Drop Specification: Withstands Multiple 1.5 m (5 ft) Drops to Concrete
IP Rating: IP 54
Operating Temperature: -20° to 50°C (-4° to 122°F)
