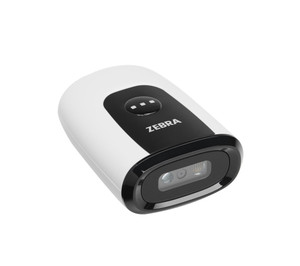

Zebra DS5502-LB Fixed Mount Scanner for Labs
Zebra DS5502-LB Fixed Mount Scanner for Labs
The Zebra DS5502-LB Fixed Mount Scanner for Labs enhances clinical workflows, reduces errors, and improves patient safety. With a tiny footprint, the DS5502-LB fits into small spaces, and an IP54 sealing enables frequent disinfecting wipe downs. The DS5502-LB can read 1D or 2D barcodes, printed or mobile, even on dimly lit screens. The megapixel sensor in the DS5502-LB delivers a 184% increase in resolution when compared to the previous generation Zebra DS457. With Zebra's Blood Bag Parse+, a single scan captures all required data on every blood bag. Zebra's UDI Scan+ automatically parses and formats unique device identification (UDI) on medical device packaging to help fill out fields on applications. The standard quarter-inch camera mount on the bottom of the scanner enable the use of an endless amount of third-party mounting accessories. The DS5502-LB supports both RS232 and USB, enabling the DS5502-LB to stay in use as systems migrate from RS232 to USB.
NOTE: The DS5502-LB Scanner is unavailable with UHF RFID technology. This scanner reads 1D and 2D barcodes, but does not have UHF capabilities.
Configuration Options
Additional configuration options are available to meet your needs. Contact us today for more information.
Data Sheet — Zebra DS5502-LB Fixed Mount Scanner for Labs
What's included?
- Zebra DS5502-LB Fixed Mount Scanner Unit
- 3 Year Standard Manufacturer Warranty (Three Year Comprehensive Warranty Available)
- 7 ft USB Cable, if selected above
NOTE: USB Cable and 3-in-1 Mount NOT included.
Why buy this scanner?
The Zebra DS5502-LB speeds up lab workflows with reliable scanning, compact versatility, and support for software designed for the lab. Blood Bag Parse+ enables a single scan to capture all necessary information off of blood bags, and UDI Scan+ takes data from barcodes on medical devices, parses, formats, and sends the data to the Electronic Health Record (EHR), without the need for manual data entry.
Features
- Designed for 1D/2D intensive applications.
- Software support specifically for blood bags and medical devices.
- Scans any bar code on paper, mobile phones, and computer displays.
- Streamlines and error-proofs medical data entry.
- Designed for small spaces with a near zero footprint.
- Soft, white illumination and green LED aimer make scanning easy in a wide variety of conditions.
- A configuration wizard, 123Scan, simplifies the deployment of scanner.
- New megapixel sensor reads damaged and poorly printed barcodes.
- Easily takes high quality images of prescriptions, ID cards, checks, and more.
- Common applications: laboratory, pharmacy, patient admissions, and healthcare.
Zebra OneCare Support with Comprehensive Coverage
Zebra OneCare Essential delivers the fully featured comprehensive coverage you need to maximize uptime and value of your Zebra device. This service sets the industry bar for service and support, with features that include coverage for accidental damage and normal wear and tear, technical support during your local business hours, access to software updates, and a 3-day turnaround time on repairs.
NOTE: This service is available for purchase within 30 days of your equipment purchase. Purchase of any Zebra OneCare Support Service voids the included standard warranty, resulting in a coverage of three (3) years total. Contact us today for more detailed information.
Recommended Accessories
The following accessories are available for the Zebra DS5502-LB Fixed Mount Scanner for Labs. Contact us today for more detailed information on these accessories.
- Zebra 7 ft USB Cable | For DS55 Fixed Mount Scanners
- Zebra 7 ft RS-232 Cable | For DS55 Fixed Mount Scanners
- Zebra 7 ft RS-232 Cable and Power Supply Kit | For DS55 Fixed Mount Scanners
- Zebra 3-in-1 Multi-Mount Bracket | For DS55 Fixed Mount Scanners
- Zebra Black Gooseneck Stand | For DS55 Fixed Mount Scanners
- Zebra White Gooseneck Stand | For DS55 Fixed Mount Scanners
- Zebra USB Cables
- Zebra Serial RS-232 Cables
- Zebra Regional Power Supplies
| Product Type: | Barcode Scanner |
|---|---|
| ELECTRICAL: | |
| Scanner: | 2D Imager |
| Data Interface: | RS-232, USB |
| Power Source: | 4.75 to 5.25 VDC, 350 to 360 mA RMS |
| SCAN PERFORMANCE: | |
| Scan Mode: | Presentation Mode and Trigger Mode |
| Scan Pattern: | Omni-Directional |
| Sensor Resolution: | 1280 x 800 Pixels |
| Imager Field of View: | Horizontal: 48° , Vertical: 30° |
| Minimum Print Contrast: | 15% Minimum Reflective Difference |
| 1D Decode Capabilities: | All Major 1D Barcodes |
| 2D Decode Capabilities: | PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, and SecurPharm |
| OCR Capabilities: | OCR-A, OCR-B, MICR, US Currency |
| Laser Classification: | Circular 525 nm True Green LED |
| MECHANICAL: | |
| Dimensions: | 30 x 56 x 72 mm (1.2 x 2.2 x 2.8 in) |
| Weight: | 0.065 kg (0.14 lbs) |
| ENVIRONMENT: | |
| Drop Specification: | Withstands Multiple 1.5 m (5 ft) Drops to Concrete |
| IP Rating: | IP 54 |
| Operating Temperature: | -20° to 50°C (-4° to 122°F) |
