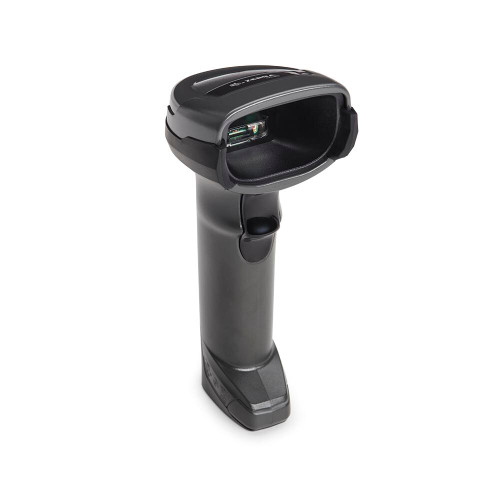

Zebra DS3678-SR Cordless Standard Range Handheld Scanner with Cradle USB Kit
Zebra DS3678-SR Cordless Standard Range Handheld Scanner with Cradle USB Kit
As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the DS3678-SR Cordless Scanner is ready for one of the world's toughest environments. Ideally suited for warehouse and port applications, DS3678-SR provides unstoppable performance that maximizes workforce productivity and throughput in your operations. Designed to capture standard 1D or 2D barcode, the DS3678-SR offers a scanning range from near contact to nearly 1.5 m (5 ft) away in practically any condition - even if they are under shrinkwrap, damaged, dirty, or poorly printed. Built from the ground up to handle extreme cold, the DS3678-SR is manufactured with unique plastics, cables, and components that will not become brittle in freezing temperatures.
NOTE: The DS3678-SR Scanner is unavailable with UHF RFID technology. This scanner reads 1D and 2D barcodes, but does not have UHF capabilities.
Configuration Options
Additional configuration options are available to meet your needs. Contact Us today for more information.
Data Sheet — Zebra DS3678-SR Cordless Standard Range Handheld Scanner with Cradle USB Kit
What's included?
- Zebra DS3678-SR Cordless Standard Range Handheld Scanner Unit
- Three Year Standard Manufacturer Warranty - Scanner Only (Three Year Comprehensive Warranty Available)
- 7 ft USB Cable
- Cradle
- Power Supply
- Line Cords
Why buy this scanner?
The Zebra DS3678-SR is an advanced imager that delivers lighting-fast capture of any 1D or 2D barcode displayed on a screen or printed on a label in virtually any condition. Equipped with superior scanning performance and an ultra-rugged design, the DS3608-SR offers unprecedented durability in ultra-challenging environments.
Features
- Cordless scanner for 1D/2D barcode capture.
- Advanced imager that reads 1D and 2D barcodes displayed on a screen or printed on a label faster and farther than other standard range scanners.
- Scanning range from near contact to nearly 1.5 m (5 ft) away in practically any condition.
- Multi-code captures and processes up to 20 barcodes simultaneously.
- Users can easily select and capture an individual barcode from any picklist.
- Designed to handle freezing temperatures without becoming brittle.
- Ideally suited for use in freezers and outdoor yards.
- Comes standard with Zebra's DataCapture DNA.
- Dust proof, spray proof, and waterproof to IP 67 - they can be sprayed down with jetting water and even submersed in water.
- Bluetooth 4.0 (Low Energy) provides lighting fast wireless communication and maximum energy efficiency.
- Zebra Wi-Fi Friendly Mode eliminates the wireless interference that Bluetooth devices can create in your Wi-Fi environment.
- Supports Digimarc digital watermark technology, where barcodes are printed repeatedly over all surfaces yet are invisible to workers and consumers.
- Common applications: warehouse and port.
Zebra OneCare Support with Comprehensive Coverage
Zebra OneCare Essential delivers the fully featured comprehensive coverage you need to maximize uptime and value of your Zebra device. This service sets the industry bar for service and support, with features that include coverage for accidental damage and normal wear and tear, technical support during your local business hours, access to software updates, and a 3-day turnaround time on repairs.
NOTE: This service is available for purchase within 30 days of your equipment purchase. Purchase of any Zebra OneCare Support Service voids the included standard one-year warranty, resulting in a coverage of three (3) years total. Contact us today for more detailed information.
Recommended Accessories
The following accessories are available for the Zebra DS3678-SR Cordless Standard Range Handheld Scanner with USB Cradle Kit. Contact us today for more detailed information on these accessories.
- Zebra Adjustable Intellistand Stand for DS3600 Series Handheld Scanners
- Zebra Power Supply & Line Cords for 36XX Series Scanners
- Zebra Standard Cradle | For DS3678 Scanners
- Zebra Charging/Communication Cradle
- Zebra 4-Slot Battery Charger
- Zebra 4-Slot Battery Charger Kit
- Zebra USB Cables
- Zebra Shield USB Cables
- Zebra RS-232 Cables
- Zebra Keyboard Wedge Cable
- Zebra Holsters
- Zebra Mounts
- Zebra Scanner Holders
- Zebra Spare Battery
- Zebra Wrist Strap
- Zebra Regional Power Supplies
- Zebra Line Cords
| Product Type: | Barcode Scanner |
|---|---|
| ELECTRICAL: | |
| Scanner: | 2D Imager |
| Data Interface: | USB, RS232, Keyboard Wedge, Industrial Ethernet |
| Power Source: | PowerPrecision+ 3100 mAh Li-Ion Battery |
| SCAN PERFORMANCE: | |
| Scan Mode: | Handheld trigger |
| Scan Pattern: | Omni-directional |
| Sensor Resolution: | 1280 x 800 pixels |
| Imager Field of View: | Horizontal: 42°, Vertical: 28° |
| Minimum Print Contrast: | 15% minimum reflective difference |
| 1D Decode Capabilities: | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| 2D Decode Capabilities: | PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes, DotCode |
| Digimarc Decode Capabilities: | Digital watermark technology |
| IUID Support Decode Capabilities: | Supports IUID parsing, the ability read and separate IUID fields per application requirements |
| Laser Classification: | 610nm LED |
| MECHANICAL: | |
| Dimensions: | 185.4 x 76.2 x 142.2 mm (7.3 x 3 x 5.6 in) |
| Weight: | 0.407 kg (0.90 lbs) |
| Color: | Industrial green |
| ENVIRONMENT: | |
| Drop Specification: | Withstands multiple 2.4 m (8 ft) drops to concrete |
| IP Rating: | IP 65 and IP 67 |
| Operating Temperature: | -20° to 50°C (-4° to 122°F) |
