Description

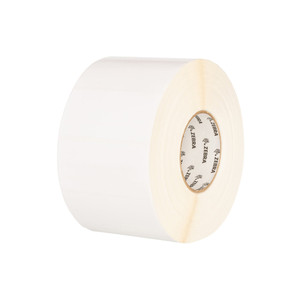

Zebra 4" x 2" | 4" x 6" Z-Perform PolyPro 4000D Advanced RFID Label | For Mobile Printers
Offering an economical choice for 4" wide labeling applications, these 4" x 2" and 4" x 6" blank paper labels come standard with the Zebra ZBR4100 inlay and NXP UCODE 9 integrated circuit. This advanced RFID label provides a higher level of read performance than Zebra's general purpose RFID labels in similar applications. With an all-temperature permanent adhesive, these labels can be applied in temperatures as low as -29°C (-20°F) and will remained adhered in temperatures from -54°C to 60°C (-65°F to 140°F) making these labels perfect for use in cold environments. Meeting the FDA 175.105 requirements for indirect food contact, these labels can be applied to shrink wrap and other food packaging.
Data Sheet — Zebra 4" x 2" | 4" x 6" Z-Perform PolyPro 4000D Advanced RFID Label | For Mobile Printers
Need help selecting the right tag? Check out our tag guide.
Why buy this tag?
Compatible with select Zebra mobile RFID printers, these 4" x 2" and 4" x 6" labels are designed specifically for customers in need of blank labels for "at home" or on demand printing. These direct thermal RFID labels offer a simple printing solution by avoiding the additional cost and effort incurred when using printer ribbon.
Features
- 4"x 2" or 4" x 6" label - depending on selection above.
- Advanced RFID label with all-temp adhesive.
- Off-axis label placement.
- PolyPro 4000D direct thermal material.
- Case of 12 rolls - 65 or 190 labels - depending on selection above.
- Designed for use with select Zebra mobile printers.
- Smear/scratch and moisture resistance.
- BPA and latex free.
- 19.1 mm (0.75 in) core, 57.15 mm (2.25 in) outer diameter.
- Provides good resistance to common industrial cleaning solutions.
- Ideal for general-purpose labeling, houseware goods labeling, and cold storage.
- Suited for densely packed items and overhead reader usage.
- Typical applications include labeling of cases, pallets, products and healthcare specimens where longer read ranges are required.
Compatibility
- Zebra ZQ520 UHF RFID Direct Thermal Mobile Printers
- Zebra ZQ521R UHF Direct Thermal Mobile Printers
- Zebra ZQ630R Plus UHF RFID Direct Thermal Mobile Printers
| Product Type: | Tag |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | EPCglobal UHF Class 1 Gen 2v2 (ISO/IEC 18000-63) |
| Operating Frequency: | Global (865-928 MHz) |
| IC Type: | NXP UCODE 9 |
| Memory: | EPC 96 Bits, User 0 Bits, TID 96 Bits |
| EPC Memory Content: | Serialized, Not Guaranteed Unique |
| Max Read Distance: | Up to 20 m (65.6 ft) - Frequency and Surface Dependent |
| Applicable Surface Materials: | Non-metallic Surfaces Including Plastic, Cardboard, Glass, PVC, and Rubber |
| MECHANICAL: | |
| Tag Form Factor: | Label Tag |
| Tag Materials: | PolyPro 4000D |
| Recommended Ribbon: | Ribbon is Not Required when Printing via Direct Thermal |
| Attachment Method: | All-temp Adhesive |
| Dimensions: | 101.6 x 50.8 mm (4 x 2 in) 101.6 x 152.4 mm (4 x 6 in) |
| Weight: | 0.9 g or 2.7 g - Depending on Selection Above |
| ENVIRONMENT: | |
| Operating Temperature: | -40° to +85°C (-40° to +185°F) |
