Description

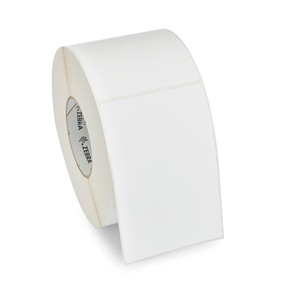

Zebra 3.88" x 1.06" Z-Perform 1500T Advanced RFID Label | For Industrial Printers
Manufactured to ensure optimum performance in select Zebra industrial printers, these 3.88" x 1.06" thermal transfer white paper labels come standard with the Avery Dennison Smartrac DogBone inlay and NXP UCODE 9 integrated circuit. This advanced RFID label provides a higher level of read performance than Zebra's general purpose RFID labels in similar applications. It is manufactured with a permanent acrylic adhesive and provides the optimal balance between performance and price.
Data Sheet — Zebra 3.88" x 1.06" Z-Perform 1500T Advanced RFID Label | For Industrial Printers
Need help selecting the right tag? Check out our tag guide.
Why buy this tag?
These blank 3.88" x 1.06" RFID labels are designed for use with select Zebra RFID industrial printers under the assumption that the customer will do the printing and encoding and just needs stock RFID labels.
Features
- Case of 1 rolls - 3,000 labels per roll.
- Advanced RFID label with permanent acrylic adhesive.
- Off-axis label placement.
- Designed for use with select Zebra industrial printers.
- Z-Perform 1500T thermal transfer smooth paper label.
- Meets FDA 175.105 for indirect food contact.
- 76.2 mm (3 in) core, 203 mm (8 in) outer diameter.
- Suitable for fanfolding.
- Recommended for printing applications up to 356 mm (14 in) per second.
- Ideally suited for densely packed items and overhead reader usage.
- Common applications: item level labeling, retail case labeling, and transportation.
Compatibility
- Zebra RXi4 Industrial RFID Series Printers
- Zebra ZE500R RFID Series Printers
- Zebra ZT231 RFID Printers
- Zebra ZT410 RFID Printers
- Zebra ZT411 RFID Printers
- Zebra ZT420 RFID Printers
- Zebra ZT421 RFID Printers
- Zebra ZT610 RFID Printers
- Zebra ZT620 RFID Printers
| Product Type: | Tag |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | EPCglobal UHF Gen 2v2 |
| Operating Frequency: | Global (865-928 MHz) |
| IC Type: | NXP UCODE 9 |
| Memory: | EPC 128 Bits, User 0 Bits, TID 96 Bits |
| EPC Memory Content: | Serialized, Not Guaranteed Unique |
| Max Read Distance: | Up to 19 m (62 ft) |
| Applicable Surface Materials: | Non-Metallic Surfaces Including Plastic, Cardboard, Glass, PVC, and Rubber |
| MECHANICAL: | |
| Tag Form Factor: | Label Tag |
| Tag Materials: | Z-Perform 1500T |
| Recommended Ribbon: | Zebra 6000 Wax or 3200 Wax/Resin Ribbon |
| Attachment Method: | Permanent Acrylic Adhesive |
| Dimensions: | 98.6 x 26.9 mm (3.88 x 1.06 in) |
| Weight: | 0.5 g |
| ENVIRONMENT: | |
| Operating Temperature: | Not Published |
