Description
*This product is reaching end-of-life and will soon be discontinued. Visit Zebra 2.125" x 1.31" 1500T Thermal Transfer RFID Label - For Industrial Printers for a recommended replacement product.*

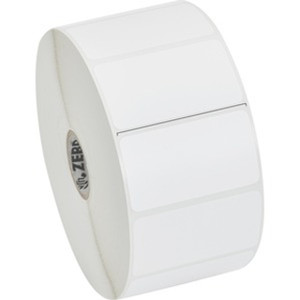

Zebra 2.09"x 1.30" 2000T Thermal Transfer RFID Label - For Industrial Printers
Offering an economical choice for 2" wide labeling applications, Zebra 2.09"x 1.30" 2000T Thermal Transfer RFID blank paper labels come standard with the BoingTech BT793 inlay and NXP UCODE 9 integrated circuit.
Data Sheet — Zebra 2.09"x 1.30" 2000T Thermal Transfer RFID Label - For Industrial Printers
Need help selecting the right tag? Check out our tag guide.
Why buy this tag?
Part of the RFID Value Range, the Zebra 2.09"x 1.30" 2000T Thermal Transfer RFID Label is an excellent starting point for new RFID proof of concepts. These affordable RFID labels work on most non-metallic surfaces, such as plastic and corrugate.
Features
- Thermal transfer RFID label with permanent adhesive.
- Case of 1 rolls, 2,700 labels per roll.
- 2.09"x 1.30" Label.
- BoingTech BT793 Inlay equipped with the NXP UCODE 9 chip.
- Z-Perform 2000T material.
- 76.2 mm (3 in) core, 203.2 mm (8 in) outer diameter.
- Designed for use with industrial printers.
- Typical applications include labeling of case, pallet, freight, and assets.
Compatibility
- Zebra R110Xi4 Industrial RFID Series Printers
- Zebra ZE500R RFID Series Printers
- Zebra ZT411 RFID Printers
- Zebra ZT420 RFID Printers
- Zebra ZT421 RFID Printers
- Zebra ZT610 RFID Printers
- Zebra ZT620 RFID Printers
| Product Type: | Tag |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | EPCglobal UHF Class 1 Gen 2v2 (ISO/IEC 18000-63) |
| Operating Frequency: | Global (865-928 MHz) |
| IC Type: | NXP UCODE 9 |
| Memory: | EPC 96 Bits, TID 96 Bits, User 0 Bits |
| EPC Memory Content: | Not Guaranteed Unique |
| Max Read Distance: | Testing Recommended |
| Applicable Surface Materials: | Non-Metallic Surfaces Including Plastic, Cardboard, Glass, PVC, and Rubber |
| MECHANICAL: | |
| Tag Form Factor: | Label Tag |
| Tag Materials: | Z-Perform 2000T |
| Recommended Ribbon: | Not Published |
| Attachment Method: | Permanent Adhesive |
| Dimensions: | 53.1 x 33.0 mm (2.09 x 1.30 in) |
| ENVIRONMENT: | |
| Operating Temperature: | -40° to +70°C (-40° to +158°F) |
