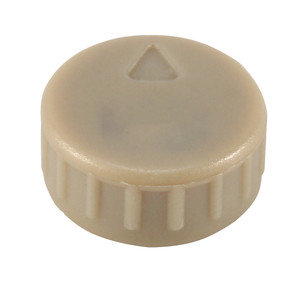

Xerafy XS Wedge RFID Tag | Higgs-9
Xerafy XS Wedge RFID Tag | Higgs-9
Xerafy's XS Wedge RFID Tags offer outstanding performance in the most demanding environments. Built to withstand extreme temperatures, these IP 68 rated tags are manufactured with high performance polymer for the casing to ensure exceptional dirt, chemical, UV, and wear resistance.
Data Sheet — Xerafy XS Wedge RFID Tag | Higgs-9
Need help selecting the right tag? Check out our tag guide.
Why buy this tag?
Xerafy XS Wedge RFID Tags are manufactured with an unique, round design that allows them to be easily embedded in metal. These ceramic UHF RFID tags deliver a read range of up to 1 m (3.3 ft) at optimal performance.
Features
- IP 68 rated RFID tag.
- Embeddable in metal.
- Superior read-range.
- 688 bits of user memory.
- Rugged for harsh environments.
- Small form factor.
- Built to withstand extreme temperatures, liquids, pressure, and corrosion.
- Optimal read ranges for in-the-field applications.
- Common applications: onshore and offshore pipes, heavy equipment and tools, automotive manufacturing, and industrial molds.
| Product Type: | Tag |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C) |
| Operating Frequency: | FCC (902-928 MHz), ETSI (865-868 MHz) |
| IC Type: | Alien Higgs-9 |
| Memory: | EPC 96 bits, User 688 bits, TID 48 bits |
| EPC Memory Content: | Unique, Randomized Number |
| Max Read Distance - Handheld, US: | Up to 0.5 m (1.6 ft) |
| Max Read Distance - Handheld, EU: | Up to 0.4 m (1.3 ft) |
| Max Read Distance - Fixed, US: | Up to 1 m (3.3 ft) |
| Max Read Distance - Fixed, EU: | Up to 0.8 m (2.6 ft) |
| Applicable Surface Materials: | Metallic Surfaces |
| MECHANICAL: | |
| Tag Form Factor: | Hard Tag |
| Tag Materials: | Industry Grade Polymer |
| Attachment Method: | Press Fit, Embedded |
| Dimensions: | ø 10.3 x 4.6 mm (ø 0.405 x 0.181 in) |
| Weight: | 8 g |
| ENVIRONMENT: | |
| Operating Temperature: | -40° to +85°C (-40° to +185°F) |
