Xerafy PICO On RFID Tag | Higgs-9
Xerafy PICO On RFID Tag | Higgs-9

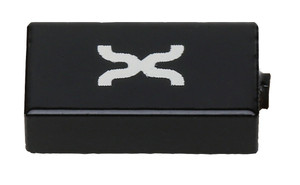

Xerafy’s PICO On UHF RFID tags are UHF RFID on-metal tags, sized to fit on small metallic assets like blade servers, yet exceed competitive read range performance for tags twice its size. At 13 x 7 x 3 mm (0.5 x 0.38 x 0.12 in) the PICO On has a small package that packs a mighty punch, with up to 3 m (10 ft) read range, providing an unmatched value proposition for multiple markets from IT asset and tool tracking to instrument tracking.
Data Sheet — Xerafy PICO On RFID Tag | Higgs-9
Need help selecting the right tag? Check out our tag guide.
Why buy this tag?
The PICO On is designed as an on metal RFID tag and offers an exceptional read range of 3 m (10 ft) for a tag with such a small form factor. The PICO On is designed to be attached on metal assets where its small size and low profile are very advantageous.
Features
- Increased read performance.
- Survives temperatures up to 200°C (392°F).
- Superior performance-to-size ratio, with a 3 m (9.8 ft) read range.
- Passive UHF EPC Class 1 Gen 2.
- 688 bits of user memory.
- Small form factor.
- High application temperature range.
- IP 68 Rated.
- Common applications: hand tools, weapon management, oilfield equipment, and data centers.
| Product Type: | Tag |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C) |
| Operating Frequency: | FCC (902-928 MHz), ETSI (866-868 MHz) |
| IC Type: | Alien Higgs-9 |
| Memory: | EPC 96 bits, User 688 bits, TID 48 bits |
| EPC Memory Content: | Unique, Synchronized |
| Max Read Distance - Handheld: | Up to 2 m (6.6 ft) |
| Max Read Distance - Fixed: | Up to 3 m (9.8 ft) |
| Applicable Surface Materials: | Metallic Surfaces |
| MECHANICAL: | |
| Tag Form Factor: | Hard Tag |
| Tag Materials: | Ceramic |
| Attachment Method: | Industrial Adhesive |
| Dimensions: | 12.8 x 7.1 x 3.1 mm (0.50 x 0.28 x 0.12 in) |
| Weight: | 1.4 g |
| ENVIRONMENT: | |
| Operating Temperature: | -40° to +85°C (-40° to +185°F) |
