Description
*This product is reaching end-of-life and will soon be discontinued. Visit Xerafy NANO Plus RFID Tag | Higgs-9 for a recommended replacement product.*

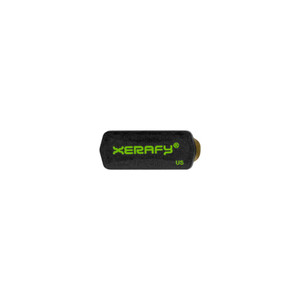

Xerafy NanoX II RFID Tag | NXP UCODE 8
Xerafy’s X II Series of UHF RFID tags are specifically designed to be the smallest and most rugged RFID-on-metal tags in the world for industrial markets where critical and potentially hazardous situations require reliable identification of assets. Xerafy’s patented RF antenna design provides an unrivaled performance-to-size ratio, reducing tag size and allowing customers to attach X II tags to small metallic assets that have been too challenging to track in the past. The durable X II Series can survive temperatures of up to 482°F (250°C) and other harsh elements such as high impact and caustic chemicals. X II tags are constructed with robust materials and rated IP68 for high reliability and durability in all types of environments. They integrate the latest IC technology to deliver the industry’s best performance and memory size while conforming to EPC Class 1 Gen 2 specifications. Xerafy products are guaranteed for the highest quality and excellence and meet the industry’s stringent safety and security requirements.
Data Sheet — Xerafy NanoX II RFID Tag | NXP UCODE 8
Need help selecting the right tag? Check out our tag guide.
Why buy this tag?
The Nanox II is the best performing RFID-on-metal tag in the industry for its size, with read ranges on metallic assets of up to 20 feet (6 meters).
Features
- High performance RFID-on metal tags.
- Passive UHF EPC Class 1 Gen 2.
- IP68 rating for harsh environments.
- High application temperature range.
| Product Type: | Tag |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C) |
| Operating Frequency: | FCC (902-928 MHz), ETSI (866-868 MHz) |
| IC Type: | NXP UCODE 8 |
| Memory: | EPC 128 bits, TID 96 bits |
| EPC Memory Content: | Unique, randomized number |
| Max Read Distance - Handheld: | Up to 4 m (14 ft) |
| Max Read Distance - Fixed: | Up to 6 m (20 ft) |
| Applicable Surface Materials: | Metallic surfaces |
| MECHANICAL: | |
| Tag Form Factor: | Hard tag |
| Tag Materials: | Engineering-grade nylon polymer |
| Attachment Method: | High performance adhesive |
| Dimensions: | 31.7 x 12.8 x 4.8 mm (1.25 x 0.51 x 0.20 in) |
| Weight: | 17.2 g |
| ENVIRONMENT: | |
| Operating Temperature: | -30° to +85°C (-22° to +185°F) |
| Application Temperature: | -40°C (-40°F) - Cold, +150°C (+302°F) - Dry Heat |
