Vulcan RFID PAR90209H (RHCP) Outdoor RFID Antenna (FCC)
Vulcan RFID PAR90209H (RHCP) Outdoor RFID Antenna (FCC)
The Vulcan RFID PAR9029H (RHCP) Outdoor RFID Antenna is a durable and low-profile antenna made for outdoor environments. This circularly polarized antenna provides reception and transmission of signals in the 902-928 MHz frequency band with extremely low VSWR and axial ratios, allowing users to achieve the maximum performance for an antenna of this type. The Vulcan RFID PAR90209H is housed in an IP67 rated enclosure denoting its rugged and weatherproof design, and is UL 94-V2 rated for flammability. Additionally, the heavy duty radome enclosure is capable of being directly wall-mounted.
Data Sheet — Vulcan RFID PAR90209H (RHCP) Outdoor RFID Antenna (FCC)
Need help selecting the right antenna? Check out our antenna guide.
What's included?
- Vulcan RFID PAR90209H Antenna Unit
Why buy this antenna?
The Vulcan RFID PAR9029H (RHCP) Outdoor RFID Antenna is a high gain, circularly polarized antenna. The IP67 rated heavy duty radome enclosure lends to its rugged but low-profile design, ideal for outdoor applications.
Features
- Low profile.
- Extremely low VSWR and axial ratio.
- Weather and UV resistant radome.
- Wide range of connector options.
- Left hand and right hand CP versions.
- IP 67 rated enclosure for outdoor use.
- UL 94-V2 rate for flammability.
Information
We can supply you with ANY length custom cable with ANY type of connectors. If you don't see the cable you need, please contact us so we can assist you.

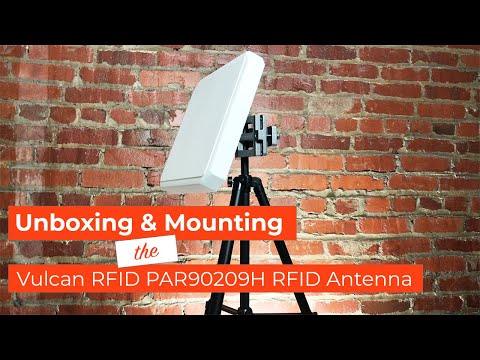

Video
| Product Type: | Antenna |
|---|---|
| ELECTRICAL: | |
| Operating Frequency: | FCC (902-928 MHz) |
| Polarization: | Circular |
| Gain: | 9.0 dBic |
| Max Read Distance: | Not published |
| Elevation Beamwidth: | 70° |
| Azimuth Beamwidth: | 70° |
| MECHANICAL: | |
| Connector Type: | N-Type female (connects to N-Type male) |
| Cable: | Not included |
| Mounting: | Threaded stud |
| Dimensions: | 259 x 259 x 33.5 mm (10.2 x 10.2 x 1.32 in) |
| Weight: | 1 kg (2.3 lbs) |
| ENVIRONMENT: | |
| IP Rating: | IP 67 |
| Operating Temperature: | -25° to +70°C (-13° to +158°F) |
