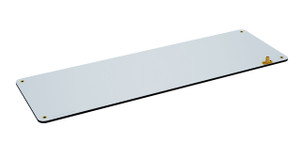

Vulcan RFID p13 UHF RFID Antenna (FCC/ETSI)
Vulcan RFID p13 UHF RFID Antenna (FCC/ETSI)
The Vulcan RFID p13 UHF RFID Antenna is a compact, high gain RFID UHF antenna with circular polarization. This antenna has a very thin form factor, which allows for the integration of the antenna inside objects. This antenna is IP 68 rated, meaning it is dust resistant even in high concentrations, making it perfect for indoor and outdoor use. Additionally, this antenna can withstand water immersion up to 1 m (3 ft) up to 30 minutes. This antenna’s radiation pattern is characterized by a 40° beamwidth in the endfire direction and a 90° beamwidth in the broadside direction. This radiation pattern makes this antenna ideal for many RFID applications such as but not limited to: loss prevention systems, portals, tunnels, corridors, and doors.
Data Sheet — Vulcan RFID p13 UHF RFID Antenna (FCC/ETSI)
Need help selecting the right antenna? Check out our antenna guide.
What's included?
- Vulcan RFID p13 UHF RFID Antenna (FCC/ETSI) Unit
Why buy this antenna?
Equipped with a compact form factor and high gain, the Vulcan RFID p13 UHF RFID Antenna is an ideal solution for loss prevention systems, portals, tunnels, corridors, and doorway applications.
Features
- Narrow beam in the endfire direction.
- Wide beam in the broadside direction.
- High gain.
- Very thin form factor.
- Cost effective.
- IP68 Rated: resists dust even in high concentrations, and resists immersion up to 1 m for up to 30 minutes.
- Common applications: loss prevention systems, portals, tunnels, corridors, and doors.
Information
We can supply you with ANY length custom cable with ANY type of connectors. If you don't see the cable you need, please contact us so we can assist you.
| Product Type: | Antenna |
|---|---|
| ELECTRICAL: | |
| Operating Frequency: | FCC (902-928 MHz), ETSI (865-868 MHz) |
| Polarization: | Circular |
| Gain: | 6.9 dBi (US), 6.8 dBi (EU) |
| Max Read Distance: | Up to 4 m (13.1 ft) |
| Elevation Beamwidth: | 40˚ |
| Azimuth Beamwidth: | 90˚ |
| MECHANICAL: | |
| Connector Type: | SMA female Flange Straight, SMA female Flange Right Angle, or SMA female Edge Mount Placed at the Short Side of the Antenna (connects to SMA male) |
| Cable: | Not Included |
| Mounting: | Integrated Mounting Holes |
| Dimensions - excluding connector: | 417 x 137 x 3.3 mm (16.3 x 5.4 x 0.13 in) |
| Dimensions - edge mount connector: | 417 x 137 x 8 mm (16.3 x 5.4 x 0.3 in) |
| Dimensions - flange connector: | 417 x 137 x 15 mm (16.3 x 5.4 x 0.6 in) |
| Weight: | 0.35 kg (0.77 lbs) |
| ENVIRONMENT: | |
| IP Rating: | IP 68 |
| Operating Temperature: | -20˚C to +80˚C (-4˚F to +176˚F) |
