Description

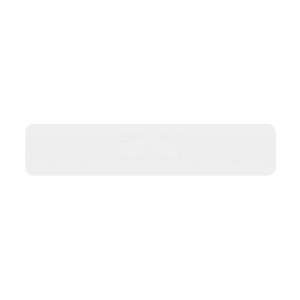

Vulcan RFID Label (2.9" x 0.59") - with ARC Certified Tageos EOS-430 M730 Inlay
Vulcan RFID Label (2.9" x 0.59") - with ARC Certified Tageos EOS-430 M730 Inlay
These blank Vulcan RFID Labels are a recommended solution for product retail suppliers looking for a tag that complies with the current RFID tag mandates from Walmart and Nordstrom. Manufactured to ensure optimum performance, these 2.9" x 0.59" thermal transfer, smooth paper labels come standard with the Tageos EOS-430 inlay and Impinj M730 integrated circuit. The integrated EOS-430 inlay is on the approved inlay list by Auburn University's RFID Lab ARC Program when used in retail applications and complies with categories F, I, L, O, Q, R, W5, W6, and Y2. Retailers and brand owners can deploy these Vulcan RFID tags globally, as they comply with frequency regulations set up in the US (FCC), EU (ETSI), and Asia. These labels are able to be permalocked in addition to being ARC certified, allowing retail suppliers to properly comply with Walmart's tag mandates.
| Vulcan RFID ARC Certified Labels | ||||
|---|---|---|---|---|
|
IC Type & Memory |
Form Factor | Dimensions | Product Code | ARC Certifications |
| Impinj M730 EPC 128 Bits, TID 96 Bits |
Paper Label Tag |
74 x 15 mm (2.9 x 0.59 in) |
VUL-EOS-430-M730-ARC | F, I, L, O, Q, R, W5, W6, Y2 |
| 54 x 34 mm (2.126 x 1.34 in) |
VUL-EOS-300-M730-ARC | F, I, L, O, Q, R, W5, W6, Y2 | ||
| White Wet Label Tag | 44 x 18 mm (1.73 x 0.71 in) |
VUL-EOS-241-M730-ARC | F, I, O, Q, W5, W6 | |
| 47 x 23 mm (1.85 x 0.91 in) |
VUL-EOS-261-M730-ARC | F, O, Q, R, W5, W6, Y2 | ||
| 75 x 13 mm (2.95 x 0.51 in) |
VUL-EOS-450-M730-ARC | F, I, L, O, Q, R, W5, W6, Y2, Z | ||
| NXP UCODE 8 EPC 128 Bits, TID 96 Bits |
75 x 15 mm (2.95 x 0.59 in) |
VUL-FIRE-UC8-WWINLY-ARC |
F, I, L | |
| NXP UCODE 9 EPC 96 Bits, TID 96 Bits |
97 x 27 mm (3.82 x 1.06 in) |
VUL-EOS-500-U9-ARC | P | |
Data Sheet — Vulcan RFID Label (2.9" x 0.59") - with ARC Certified Tageos EOS-430 M730 Inlay
*Data sheet includes retired ARC specs. Contact us for details.*
Why buy this tag?
Suitable for use in Walmart general merchandise tagging applications, these blank 2.9" x 0.59" RFID labels are designed for use in printers under the assumption that the customer will do the printing and encoding. To assist customers with the printing and encoding of these blank RFID labels, Atlas offers a comprehensive Walmart Supplier Setup Service which guides customers through printing and encoding these RFID labels with ease.
Alternatively, if selected above, Atlas provides the convenient service of printing and encoding these RFID labels before shipping them to you, allowing you to focus on other aspects of your operation.
Features
- Thermal transfer, smooth paper label without perforation between labels.
- 3 in (76.2 mm) core.
- Common applications: labeling of packaging material, compliance labeling, and, retail, point of sale, and work in process.
- Ideal items to be tagged: electronics, home goods, sporting goods, toys, and more.
Compatibility
- Zebra ZT411 RFID Printer
- Zebra ZT421 RFID Printer
- Zebra ZT610 RFID Printer
- SATO CL4NX Plus Series Thermal UHF RFID Printer
- Walmart Supplier Setup Service (Remote Assistance)
Need help selecting the right tag? Check out our tag guide.
| Product Type: | Tag |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | EPC Class 1 Gen 2 - ISO 18000-6C |
| Operating Frequency: | Global (860-960 MHz) |
| IC Type: | Impinj M730 |
| Memory: | EPC 128 Bits, User 0 Bits |
| EPC Memory Content: | Not Guaranteed Unique |
| Max Read Distance: | Testing Recommended |
| Applicable Surface Materials: | Wood, Plastic, Glass, Cardboard |
| ARC Approved Categories: | F, I, L, O, Q, R, W5, W6, Y2 |
| MECHANICAL: | |
| Tag Form Factor: | Label Tag, No Perforation |
| Tag Materials: | Printable White Paper (Thermal Transfer) |
| Recommended Ribbon: | Wax |
| Attachment Method: | Transfer Adhesive |
| Dimensions: | 73.66 x 14.99 mm (2.9 x 0.59 in) |
| Weight: | < 1 g |
| ENVIRONMENT: | |
| Operating Temperature: | -40° to +85°C (-40° to +185°F) |
