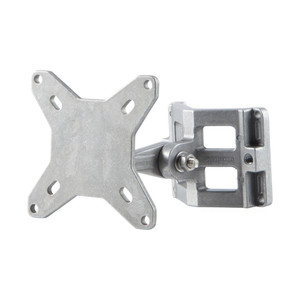

Vulcan RFID HDMNT-100MM Mounting Bracket

The Vulcan RFID HDMNT-100MM is a heavy duty die-cast aluminum mounting bracket that articulates in both the vertical and horizontal plane. It is designed to hold any device that utilizes a 100mm VESA mounting pattern, or a 63.5 mm pattern (typical in RFID antennas.) Appropriate for use with antennas, enclosures, monitors, this mounting kit includes all of the hardware that you will need to mount directly to a wall or to a pole/mast. This mounting bracket is particularly appropriate for a variety of indoor or outdoor mounting applications.

What's included?

• Vulcan RFID HDMNT-100MM Mounting Kit Unit
• Hardware for mounting to wall, pole, or mast included

Compatibility

• Vulcan RFID PAR90209H (RHCP) Outdoor RFID Antenna (FCC)
• Vulcan RFID PAL90209H (LHCP) Outdoor RFID Antenna (FCC)
• Vulcan RFID A5020 Circular Polarized Antenna (FCC)
• Vulcan RFID Mounting Plate for Times-7 A6031 SlimLine VESA Antenna
• Vulcan RFID Mounting Plate for Times-7 A6032 SlimLine VESA Antenna
• Vulcan RFID VUL-262006/TRH/A/K (RHCP) Outdoor RFID Antenna (FCC)
• MTI MT-242043/TRH/A/K (RHCP) Outdoor RFID Antenna (Global)
• MTI MT-262006/TRH/A/K (RHCP) Outdoor RFID Antenna (FCC)
• MTI MT-263003/N (LP) Outdoor RFID Antenna (FCC)
• Laird PAL90209H (LHCP) Outdoor RFID Antenna (FCC)
• Laird PAV90209H (LP) RFID Panel Antenna (FCC)
• Laird PAR90209H (RHCP) Outdoor RFID Antenna (FCC)
• RFMAX R9028LPV/R8658LPV Circular Polarized Antenna (FCC/ETSI) - VESA Mount
• RFMAX S9028PCR/S8658PCR (RHCP) Indoor RFID Antenna (FCC/ETSI)
• RFMAX S9028PCL/S8658PCL (LHCP) Indoor RFID Antenna (FCC/ETSI)
• RFMAX Mounting Plate for Times-7 A6034 SlimLine VESA Antenna
• RFMAX Mounting Plate for Times-7 A6034S SlimLine VESA Antenna
• Times-7 SlimLine A5010 Circular Polarized Antenna (FCC/ETSI) - Stud Mount
• Times-7 SlimLine A5020 Circular Polarized Antenna (FCC/ETSI)
• Times-7 A6031 (CP) Indoor RFID Antenna (FCC/ETSI)
• Times-7 A6032 (CP) Indoor RFID Antenna (FCC/ETSI)
• Times-7 A6034 (CP) RFID Antenna (FCC/ETSI)
• Times-7 A6034S (CP) RFID Antenna (FCC/ETSI)
• Times-7 B6031 (CP) Indoor RFID Antenna (FCC/ETSI)
• Alien ALR-8697 RFID Antenna (Global)
• Alien ALR-8698 RFID Antenna

Requirements

For the Vulcan RFID HDMNT-100MM Mounting Bracket to be used with the Times-7 A6031, Times-7 A6032, and the Times-7 B6031 indoor RFID antennas, the mounting bracket MUST be used in conjunction with a compatible Vulcan RFID mounting plate. The compatible mounting plates are listed below.

• Vulcan RFID Mounting Plate for Times-7 A6031, Times-7 B6031
• Vulcan RFID Mounting Plate for Times-7 A6032

This mounting plate requirement is ONLY for the Times-7 A6031, Times-7 B6031, and Times-7 A6032 indoor RFID antennas. A mounting plate is NOT required to mount any of the other antennas listed in the compatibility section above.

Note: If mounting the Zebra AN610 or Zebra AN620 indoor RFID antennas, please see the Vulcan RFID HDMNT-150MM Mounting Bracket.
