Description

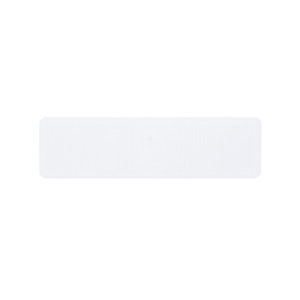

Vulcan RFID Flame UHF RFID Label | M730
The Vulcan RFID Flame UHF RFID Label is equipped with the optimal, efficient, and fast M730 IC designed to meet the needs of challenging RFID tagging applications. Combined with a small form factor and EPC memory of 128 bits, this label is ideal for operations that use small package labels, apparel hang tags, asset management, and corrugate cases. The Vulcan RFID Flame is the shorter counterpart to the Vulcan RFID Fire, but offers excellent performance and versatility. Compared to an inlay, this label is outfitted with a polypropylene facestock, exhibiting heightened durability, extending tag longevity, and making it the optimal tag for retail and shipping operations.
| Tag Variations | ||
|---|---|---|
|
IC Type & Memory |
Form Factor |
Product Code |
| Monza 4i EPC 256 Bits, User 480 Bits, TID 96 Bits |
Label | VUL-FLAME-M4I-LBLPP |
| M730 EPC 128 Bits |
Label | VUL-FLAME-M730-LBLPP |
Data Sheet — Vulcan RFID Flame UHF RFID Label | M730
Need help selecting the right tag? Check out our tag guide.
Why buy this tag?
With a polypropylene facestock rather than paper, this label exhibits a heighted durability allowing it to last longer. The Vulcan RFID Flame UHF RFID Label has a small and efficient form factor, making it ideally suited for retail and enterprise applications such as apparel hang tags and shipping labels.
Features
- Global (860–960 MHz).
- ISO 18000-6C compliance.
- 128 bits of EPC memory.
- Small form factor.
- Durable polypropylene facestock instead of paper.
- Dimensions 47.50 x 13.38 mm.
- Applications: retail, apparel, supply chain management, asset tracking, and package tracking.

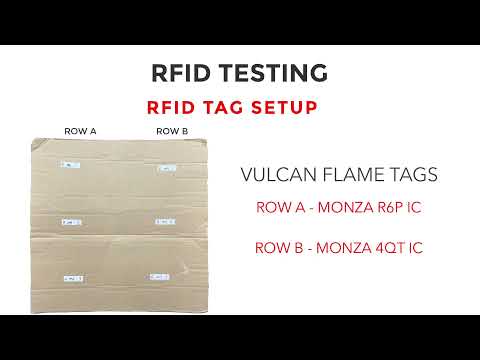

Video
| Product Type: | Tag |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | ISO 18000-6C |
| Operating Frequency: | Global (860–960 MHz) |
| IC Type: | M730 |
| Memory: | EPC 128 Bits |
| EPC Memory Content: | Unique, Auto-Serialized |
| Max Read Distance: | 25 - 30 ft on Cardboard |
| Applicable Surface Materials: | Glass, Plastic, Wood, Cardboard |
| MECHANICAL: | |
| Tag Form Factor: | Label |
| Tag Materials: | Matte White Polypropylene |
| Recommended Ribbon: | Resin |
| Attachment Method: | Permanent Acrylic-Based Adhesive |
| Dimensions: | 47.50 x 13.38 mm (1.870 x 0.526 in) |
| Weight: | 1 g |
| ENVIRONMENT: | |
| Operating Temperature: | -40° to +85°C (-40° to +185°F) |
