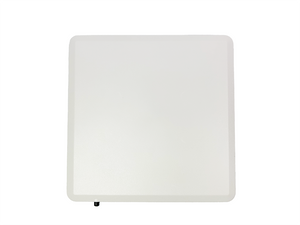

Vulcan RFID C610 Outdoor RFID Antenna | FCC
The Vulcan RFID C610 Outdoor RFID Antenna is a thin, long-range, monostatic, circularly polarized antenna that can read tags in all orientations as tags approach the read zone. When paired with a powerful reader, such as the Vulcan RFID Titanium, the Vulcan RFID C610 achieves exceptional read range. The streamlined design of the Vulcan RFID C610 Antenna enables the antenna to be installed in narrow spaces where larger antennas will not fit without any compromised on performance. Featuring 100 x 100 mm M4 threaded VESA mounting studs, the Vulcan RFID C610 Antenna can be easily mounted using the Vulcan RFID HDMNT-100MM Mounting Bracket. With an IP67 rating and waterproof SMA connector, the Vulcan RFID C610 Antenna is equipped to handle a variety of harsh environments. Its versatility makes it ideal for indoor and outdoor applications such as vehicle monitoring, auto toll gates, logistics, and warehouse management.
Data Sheet — Vulcan RFID C610 Outdoor RFID Antenna | FCC
Need help selecting the right antenna? Check out our antenna guide.
What's included?
- Vulcan RFID C610 UHF RFID Antenna Unit
- One Year Standard Warranty
Why buy this antenna?
The combination of a thin profile, IP67 rating, and VESA mounting studs make the Vulcan RFID C610 Antenna an ideal solution for indoor and outdoor RFID reading. This long-range, circularly polarized antenna is suitable for a wide variety of applications, including but not limited to vehicle monitoring, toll gates, asset management, logistics, quality control, manufacturing, and warehouse management.
Features
- Optimized circular polarization reads tags of all orientations.
- Industry leading read range performance far field antenna.
- DC grounded to protect against lightning strikes.
- Thin form factor.
- 100 x 100 mm VESA threaded studs.
- UV-resistant ASA radome.
- SMA waterproof connector.
- IP67 Rated: resists dust even in high concentrations, and can withstand water immersion up to 1 m for up to 30 minutes.
- Common applications: vehicle monitoring, asset management, auto toll gates, logistics, quality control, manufacturing, and warehouse management.
Information
We can supply you with ANY length custom cable with ANY type of connectors. If you don't see the cable you need, please contact us so we can assist you.
| Product Type: | Antenna |
|---|---|
| ELECTRICAL: | |
| Operating Frequency: | FCC (902-928 MHz) |
| Polarization: | Circular |
| Gain: | 6 dBic |
| Max Read Distance: | Up to 22 m (72 ft) |
| Elevation Beamwidth: | 70˚ |
| Azimuth Beamwidth: | 70˚ |
| MECHANICAL: | |
| Connector Type: | SMA Female (Connects to SMA Male) |
| Cable: | Not Included |
| Mounting: | 100 x 100 mm VESA Threaded Studs |
| Dimensions: | 250 x 250 x 20 mm (9.84 x 9.84 x 0.79 in) |
| Weight: | 0.69 kg (1.52 lbs) |
| ENVIRONMENT: | |
| IP Rating: | IP 67 |
| Operating Temperature: | -40˚C to +70˚C (-40˚F to +158˚F) |
