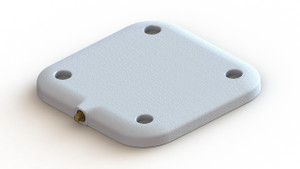

Times-7 SlimLine A5020 Circular Polarized Antenna (FCC/ETSI)
Times-7 SlimLine A5020 Circular Polarized Antenna (FCC/ETSI)
Equipped with the familiar and industry leading Times-7 ultra-low profile, the A5020 offers a compact footprint of only 150 mm / 5.9 inch square in a very smart-looking design. With a 1.5 ft. wider read range than most other antennas of similar size in the market, the circularly polarized A5020 antenna creates a new benchmark for multi-purpose UHF RFID antennas. IP68 rated and built to Times-7’s high standard for quality and robustness, the A5020 can be used for permanent outdoor applications. Its pleasing aesthetics and timeless design blends beautifully with most interiors, which makes the A5020 very suitable for customer facing environments.
Data Sheet — Times-7 SlimLine A5020 Circular Polarized Antenna (FCC/ETSI)
Need help selecting the right antenna? Check out our antenna guide.
What's included?
- Times-7 SlimLine A5020 Circular Polarized Antenna Unit
- One year standard equipment warranty
Why buy this antenna?
Derived from Times-7 best-selling A5010, the Times-7 SlimeLine A5020 Circular Polarized Antenna is a multi-purpose workhorse antenna in a compact 150 mm / 5.9 in. square footprint for those applications where a 10" is too large or a very robust antenna is required.
Features
- Compact 150 mm / 5.9 in square footprint.
- Aesthetically appealing design.
- IP 68 rated for permanent outdoor use and industrial applications.
- 1.5 ft wider read range than other antennas of similar size.
- Designed to support either flush or VESA mount.
- Common applications: kiosks and point of sale, waste management, retail, medical, and pharmaceutical.
Information
We can supply you with ANY length custom cable with ANY type of connectors. If you don't see the cable you need, please contact us so we can assist you.
| Product Type: | Antenna |
|---|---|
| ELECTRICAL: | |
| Operating Frequency: | FCC (902-928 MHz), ETSI (865-868 MHz) |
| Polarization: | Right hand circular |
| Gain: | 5.5 dBic |
| Max Read Distance: | Up to 4.3 m (14 ft) |
| Elevation Beamwidth: | 115° |
| Azimuth Beamwidth: | 115° |
| MECHANICAL: | |
| Connector Type: | SMA female (connects to SMA male) |
| Cable: | Not included |
| Mounting: | Flush or VESA mount |
| Dimensions: | 150 x 150 x 14 mm (5.9 x 5.9 x 0.55 in) |
| Weight: | 0.25 kg (0.55 lbs) |
| ENVIRONMENT: | |
| IP Rating: | IP 68 |
| Operating Temperature: | -30° to +65°C (-40° to +149°F) |
