Description
*This product is reaching end-of-life and will soon be discontinued. Visit ThingMagic M7E-MEGA UHF RAIN RFID Reader Module by JADAK for a recommended replacement product.*

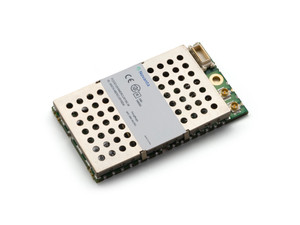

ThingMagic Micro-LTE Embedded RFID Module
The Micro-LTE is designed to meet the demands of high performance RFID handheld, mobile, and stationary readers and is optimized for applications that require reading small tag populations. This embedded UHF RFID Reader offers two antenna ports and supports the ability to transmit up to +30 dBm for demanding applications. The edge connections for signals, power, and RF allow the module to be soldered directly to a motherboard as a standard component. The on-board connectors allow the module to be mated to a motherboard as an add-on option.
NOTE: This product is a reader module – NOT a finished RFID reader – and is meant for OEM and developers to embed into products or to be used in the creation of a new finished reader. If you are interested in an existing finished reader product, check out our line of finished ThingMagic readers.
Data Sheet — ThingMagic Micro-LTE Embedded RFID Module
Need help selecting the right reader module? Check out our reader module guide.
What's included?
- M6e-MICRO LTE Embedded RFID Module Unit
Why buy this module?
The Micro-LTE reader module is optimized for building a reader for applications with small tag populations. Its small size, low power consumption, and wide RF output range make it an excellent choice for mobile uses like small volume tag commissioning stations and point of sales readers.
Features
- Support for two monostatic RF antennas
- 28 solder-down, board-edge connections or Molex low profile connector
- Separate read and write levels, command adustable
- UART and USB 2.0 control/data interfaces
- Low power consumption
Optional Supported Protocols
The protocols below can be added to each reader at an additional cost. If you have any questions, please contact us.
- ISO18000-6B
- IP-X 64, 128
- AEI ATA
| Product Type: | Reader Module |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol - Standard: | EPCglobal Gen 2 (ISO 18000-6C) with DRM |
| Air Interface Protocol - Additional: | ISO18000-6B, IP-X 64, 128 & AEI ATA are available through additional license |
| Operating Frequency: | Global (see data sheet for more info) |
| Transmit Power: | -5 to +30 dBm |
| Max Receive Sensitivity: | Not Published |
| Max Read Distance: | Over 9 m (30 ft) |
| Max Read Rate: | Up to 50 tags/second |
| Data Interface: | UART 3.3/5V; USB 2.0 |
| GPIO: | Two 3.3V bidirectional ports |
| Power Source: | DC: 3.5 to 5.25V |
| MECHANICAL: | |
| Antenna Ports: | Two 50 Ohm connections |
| Dimensions: | 46 x 26 x 4.0 mm (1.8 x 1.0 x 0.16 in) |
| Weight: | 0.008 kg (0.018 lbs) |
| ENVIRONMENT: | |
| IP Rating: | Not Published |
| Operating Temperature: | -20° to +60°C (-4° to +`140°F) |
| APPLICATION INTERFACE: | |
| Host API: | C#/.NET, Java, C |
| Demo Software: | Not Published |
