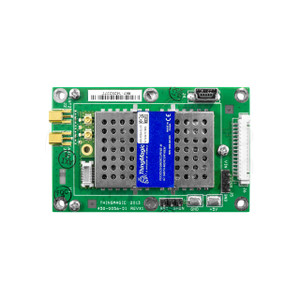

ThingMagic Micro LTE Carrier Board
ThingMagic Micro LTE module (M6E-Micro) soldered to a carrier board with M6E form factor. The Micro-LTE is designed to meet the demands of high performance RFID handheld, mobile, and stationary readers and is optimized for applications that require reading small tag populations. This embedded UHF RFID Reader offers two antenna ports and supports the ability to transmit up to +30 dBm for demanding applications. The edge connections for signals, power, and RF allow the module to be soldered directly to a motherboard as a standard component. The on-board connectors allow the module to be mated to a motherboard as an add-on option.
NOTE: This product is a carrier board – NOT a finished RFID reader – and is meant for OEM and developers to embed into products or to be used in the creation of a new finished reader. If you are interested in an existing finished reader product, check out our line of finished ThingMagic readers.
Data Sheet — ThingMagic Micro LTE Carrier Board
Module Comparison — ThingMagic Micro LTE Carrier Board
Need help selecting the right reader module? Check out our reader module guide.
What's included?
- ThingMagic Micro LTE Carrier Board Unit
Why buy this Carrier Board?
The ThingMagic Micro Carrier Board is a perfect solution for prototyping and proof-of-concept applications. The board includes the thermal advantages of solder-down and heat spreader. It can also be used in the M6e Family Development Kit.
Features
- 2 MMCX RF antenna connectors.
- Integral heat spreader.
Optional Supported Protocols
The protocols below can be added to each reader at an additional cost. If you have any questions, please contact us.
- ISO18000-6B
- IP-X 64, 128
- AEI ATA
Information
The ThingMagic Micro Carrier Board is NOT intended to replace the compatible M6e Family Development Kit. This carrier board is recommended for use in conjunction with the ThingMagic M6e-Micro LTE Embedded RFID Module Developer.
| Product Type: | Reader Module |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol - Standard: | EPCglobal Gen2V2 (18000-63) |
| Air Interface Protocol - Additional: | ISO18000-6B, IP-X 64, 128 & AEI ATA are available through additional license |
| Operating Frequency: | Global (see module data sheet for more info) |
| Transmit Power: | -5 to +30 dBm |
| Max Receive Sensitivity: | Not Published |
| Max Read Distance: | Over 9 m (30 ft) |
| Max Read Rate: | Up to 50 tags/second |
| Data Interface: | UART 3.3/5V; USB 2.0 |
| GPIO: | Two 3.3V bidirectional ports |
| Power Source: | DC: 3.5 to 5.25V |
| MECHANICAL: | |
| Dimensions: | 69 x 43 x 15 mm (2.72 x 1.69 x 0.59 in) |
| Weight: | 0.034 kg (0.08 lb) |
| ENVIRONMENT: | |
| IP Rating: | Not Published |
| Operating Temperature: | -20° to +60°C (-4° to + 140°F) |
