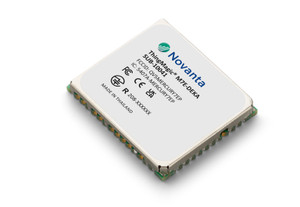

ThingMagic M7e-DEKA UHF RAIN RFID Reader Module by JADAK
ThingMagic M7e-DEKA UHF RAIN RFID Reader Module by JADAK
The ThingMagic M7e-DEKA is the smallest form factor in the Mercury Series family of embedded UHF/RAIN RFID modules with extended RF power. Featuring the Impinj E310 RAIN RFID reader chip, the module has very low power consumption and is ideal for battery-operated, low cost, small form-factor portable readers. ThingMagic DEKA's wide RF output range of (0 dBm to +27 dBm) is critical in supporting read/write requirements for RFID-enabled printers and tag commissioning stations. The M7e-DEKA platform uses the same Mercury API as other JADAK ThingMagic products, allowing for easy software integration and customization based on form-fit-function SKUs. And the module is flexible enough to allow OEMs to tailor a license that enables the features of interest in the field. The ThingMagic M7e-DEKA reader module saves space, battery power, and money; it is small enough to fit just about anywhere, with the dimensions of 18 mm L x 21 mm W x 3.0 mm H.
NOTE: This product is a reader module – NOT a finished RFID reader – and is meant for OEM and developers to embed into products or to be used in the creation of a new finished reader. If you are interested in an existing finished reader product, check out our line of finished ThingMagic readers.
Data Sheet — ThingMagic M7e-DEKA UHF RAIN RFID Reader Module by JADAK
Need help selecting the right reader module? Check out our reader module guide.
What's included?
- ThingMagic M7e-DEKA UHF RAIN RFID Reader Module Unit by JADAK Unit
Why buy this module?
The ThingMagic M7e-DEKA has a wide RF output range of 27 dBm, an Impinj E310 RAIN RFID reader chip, a high read rate of 300 tags per second, and a tag read range of 4.5 meters. It does all of this without sacrificing any flexibility or power as it is extremely portable and is designed to be used in high volume applications. When you need to build a reader with a tiny, effective module, look no further.
Features
- Impinj E310 RAIN RFID reader chip.
- Small size, slightly bigger than a quarter.
- Separate read and write levels, command adjustable.
- Single board-edge antenna connection.
- High tag read rate of up to 300 tags per second.
- Low power consumption for efficient battery-use.
- Applications: Mobile devices, battery-operated devices, smartphone accessories, medical equipment, kiosks, vending machines, and tag commissioning stations.
| Product Type: | Reader Module |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | EPCglobal Gen 2V2 (ISO 18000-63) |
| Operating Frequency: | Global (see data sheet for more info) |
| Transmit Power: | 0 to +27 dBm |
| Max Receive Sensitivity: | Not Published |
| Max Receive Distance: | Over 4.5 m (15 ft) |
| Max Read Rate: | Up to 300 tags/second |
| Data Interface: | UART 3.3V |
| GPIO: | Four 3.3V Bidirectional Ports |
| Power Source: | DC 3.7 to 5.5 V |
| MECHANICAL: | |
| Antenna Ports: | Single 50 Ohm Connection |
| Dimensions: | 18 x 21 x 3.0 mm (0.71 x 0.83 x 0.12 in) |
| Weight: | 0.003 kg (0.007 lbs) |
| ENVIRONMENT: | |
| IP Rating: | Not Published |
| Operating Temperature: | -40° to 60°C (-40° to 140°F) |
| APPLICATION INTERFACE: | |
| Host API: | C#/.NET, Java, C |
| Demo Software: | Not Published |
