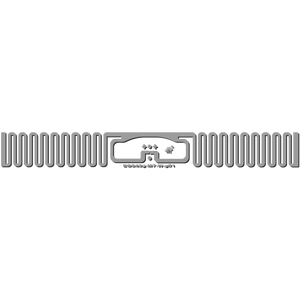

Tageos EOS-430 RFID Paper Tag | M730
Tageos EOS-430 RFID Paper Tag | M730
The Tageos EOS-430 RFID Paper Tag offers robust performance on a wide range of surfaces. The EOS-430 inlay is on the approved inlay list by Auburn University's RFID Lab ARC Program when used in retail applications and complies with categories L, I, F, Q, W5, W6, Y2, R, and O. This tag comes standard with the Impinj M730 integrated circuit which provides high performance, fast inventory capability, and advanced features for next-generation, universal RAIN RFID tags. It lends itself to solutions that include high-speed inventory counting, loss prevention with frictionless self-checkout, and embedded tagging with seamless product returns.
Data Sheet — Tageos EOS-430 RFID Paper Tag | M730
*Data sheet includes retired ARC specs. Contact us for details.*
Why buy this tag?
The Tageos EOS-430 RFID Paper Tag is a versatile solution for a wide range of applications such as retail, food and quick service restaurants, as well as logistics and general industrial segments.
Features
- Impinj connected tag.
- ARC Certified in categories L, I, F, Q, W5, W6, Y2, R, and O.
- Worldwide operation in all RFID UHF bands (860-960 MHz).
- Complies with ISO 9001:2015 Quality Management System and ISO 14001:2015 Environmental Management System, as well as Environmental Directives RoHS and REACH.
- Common applications: apparel, inventory visibility, item level tagging, logistics, and supply chain management.
- Ideal items to be tagged: electronics, home goods, sporting goods, toys, and more.
Need help selecting the right tag? Check out our tag guide.
| Product Type: | Tag |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C) |
| Operating Frequency: | Global (860-960 MHz) |
| IC Type: | Impinj M730 |
| Memory: | EPC 128 Bits, User 0 Bits, TID 96 Bits |
| EPC Memory Content: | Not Guaranteed Unique |
| Max Read Distance: | Testing Recommended |
| Applicable Surface Materials: | Wood, Plastic, Glass, Cardboard |
| ARC Approved Categories: | L, I, F, Q, W5, W6, Y2, R, O |
| MECHANICAL: | |
| Tag Form Factor: | Paper Tag |
| Tag Materials: | Printable White Paper (Thermal Transfer) |
| Recommended Ribbon: | Not Published |
| Attachment Method: | Permanent Adhesive |
| Dimensions: | 74 x 12 mm (2.91 x 0.47 in) or 74 x 17 mm (2.91 x 0.67 in) - Depending on Selection Above |
| Weight: | 0.4 g |
| ENVIRONMENT: | |
| Operating Temperature: | -40° to +85°C (-40° to +185°F) |
