Description

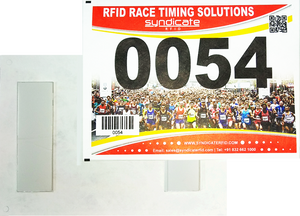

SIVA Number Bib with 2 Integrated Dumbel UHF Foam Tags (Monza R6-P)
SIVA Number Bib with 2 Integrated Dumbel UHF Foam Tags (Monza R6-P)
Supplied with crisp four color and variable data printing, SIVA Number Bibs are a popular choice for any sporting event. These number bibs are manufactured with two Dumbel UHF passive foam tags attached to the back of the bib. The integrated Dumbel UHF passive foam tags send out a unique signal, which enables the system to accurately identify the athlete/participant and record their respective times. For events where the highest level of athlete/participant detection accuracy is required, the use of 2 UHF Foam transponders is highly recommended.
NOTE: 4-color printing of number bib with variable data along with printing and encoding of the integrated transponders included in the price.
Data Sheet — SIVA Number Bib with 2 Integrated Dumbel UHF Foam Tags (Monza R6-P)
Need help selecting the right tag? Check out our tag guide.
Why buy this tag?
SIVA Number Bibs are tear-proof, waterproof, and stretch resistant making them an ideal choice for race timing applications. Designed for one-time use only, these flexible and durable bibs feature punched out holes on all four corners for easy application onto the participant.
Features
- Two printed and encoded Dumbel UHF foam tags duly applied on the reverse side of the bib.
- Ready for use, straight out of the box (no assembly required).
- For events where the highest level of athlete/participant detection accuracy is required.
- Resistant to water and sweat.
- Robust, light weight, and disposable.
- Excellent read range.
- Designed for one-time use only and can be disposed of after the event or taken home by participants as a souvenir.
- Common applications: marathon, ultrathons, and sprint races.
| Product Type: | Tag |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C) |
| Operating Frequency: | Global (860-960 MHz) |
| Inlay: | Siva Dumbel |
| IC Type: | Impinj Monza R6-P |
| Memory: | EPC 128/96 Bits, User 32/64 Bits, TID 48 Bits |
| EPC Memory Content: | Unique, auto-serialized |
| Max Read Distance: | Up to 6 m (19.7 ft) |
| Applicable Surface Materials: | Human |
| MECHANICAL: | |
| Form Factor: | Number bib with integrated foam tags |
| Bib Materials: | Tyvek paper |
| Tag Materials: | Printable White PET (Thermal Transfer), PE foam, aluminum antenna on PET base film |
| Recommended Ribbon: | Product delivered pre-printed & encoded |
| Attachment Method: | Punched out holes on all 4 corners |
| Dimensions: | 152.4 x 210 mm (6 x 8.3 in) or 228.6 x 210 mm (9 x 8.3 in), depending on selection above |
| Weight: | 5 g |
| ENVIRONMENT: | |
| Operating Temperature: | -20° to +70°C (-4° to +158°F) |
