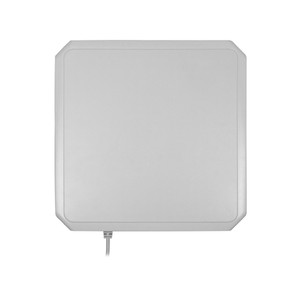

RFMAX S9028PCRJ / S8658PRJ (RHCP) Indoor RFID Antenna (FCC/ETSI)
RFMAX S9028PCRJ / S8658PRJ (RHCP) Indoor RFID Antenna (FCC/ETSI)
The RFMAX S9028PCLJ / S8658PLJ (RHCP) Indoor RFID Antenna is the industry standard antenna for passive UHF RFID installations. This unit is a right hand circularly polarized 10x10 inch panel operates at 8.5 dbic gain with reception and transmission in the FCC: 902-928 MHz and 865-870MHz frequency bands. It is built with a pre-installed 96 inch / 8 foot pigtail and RPTNC-Male connector. This antenna achieves maximum efficiency and performance across the entire frequency band. Both VSWR and axial ratios are excellent and allow the user to achieve the maximum performance for an antenna of this type. The antenna is housed in a heavy duty radome enclosure that can be directly wall mounted. An optional articulating mount allows either wall or mast mounting. Equivalent to: Laird Cushcraft S9028PCRJ96RTN and Impinj RHCP Far Field RFID Antenna (FCC/ETSI).
US Data Sheet — RFMAX S9028PCRJ (RHCP) Indoor RFID Antenna
EU Data Sheet — RFMAX S8658PRJ (RHCP) Indoor RFID Antenna
Need help selecting the right antenna? Check out our antenna guide.
What's included?
- RFMAX S9028PCRJ or S8658PRJ RHCP Indoor RFID Antenna unit
- One integrated 8 ft pigtail terminating in a RP-TNC Male connector
Why buy this antenna?
The RFMAX S9028PCRJ / S8658PRJ (RHCP) Indoor RFID Antenna is the industry standard antenna for passive UHF RFID installations. This unit is a circularly polarized 10x10 inch panel that operates at 8.5 dBic gain. It is built with a pre-installed 8 foot pigtail and RPTNC-Male connector.
Features
- Low profile.
- Extremely low VSWR and axial ratio.
- Weather and UV resistant radome.
- Wide range of connector and cable options.
- Left hand and right hand CP versions.
- Radome is UL 94-V2 rated for flammability.
- White ABS plastic.
- Applications: warehouse, distribution center, airports and hospitals, transit terminals, and conveyer belts.
Information
NOTE: RFMax antennas were formerly sold under the brand Laird Technologies. They are the same great antennas - just with a new name. This antenna is equivalent to Laird Cushcraft S9028PCRJ96RTN and Impinj RHCP Far Field RFID Antenna (FCC/ETSI).
We can supply you with ANY length custom cable with ANY type of connectors. If you don't see the cable you need, please contact us so we can assist you.
| Product Type: | Antenna |
|---|---|
| ELECTRICAL: | |
| Operating Frequency: | FCC (902-928 MHz), ETSI (865-870 MHz) |
| Polarization: | Right hand circular |
| Gain: | 8.5 dBic (US), 8.5 dBic (EU) |
| Max Read Distance: | Not published |
| Elevation Beamwidth: | 70° |
| Azimuth Beamwidth: | 70° |
| MECHANICAL: | |
| Connector Type: | RP-TNC male (connects to RP-TNC female) |
| Cable: | 2.4 m (8 ft) Pigtail terminating in an RP-TNC Male connector |
| Mounting: | 2 Mounting Threaded Studs |
| Dimensions: | 259 x 259 x 33 mm (10.2 x 10.2 x 1.32 in) |
| Weight - FCC: | 1 kg (2.3 lbs) |
| Weight - ETSI: | 0.79 kg (1.75 lbs) |
| ENVIRONMENT: | |
| IP Rating: | IP 54 |
| Operating Temperature: | -25°C to +70°C (-13°F to +158°F) |
