Description
*Formerly named PcProx. The WAVE ID is the same great reader - just with a new name. The HID iCLASS ID# model is reaching end-of-life and will soon be discontinued. Visit rf IDEAS WAVE ID Plus Mini LF/HF RFID Reader for a recommended replacement product.*

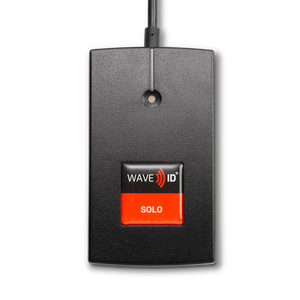

rf IDEAS WAVE ID Solo HF RFID Reader
The rf IDEAS WAVE ID Solo is a credential reader designed for organizations seeking to implement new ways to improve efficiency and leverage their existing card system beyond physical security. This proximity model provides error-free identification for over 300 million physical access cards worldwide. By connecting the reader directly to a USB port, the WAVE ID Solo reader unlocks its plug-and-play functionality.
The rf IDEAS WAVE ID Solo comes in both SDK and keystroke configurations. SDK equipped WAVE ID Solo readers pass the raw card data directly to the host. Keystroke equipped WAVE ID Solo readers use a keyboard wedge emulator so that data read from ID cards is output to the cursors location on the screen. Additionally, the reader can be configured to add keystrokes before and after the card data is read.
The WAVE ID Solo is fully customizable and easy to configure, allowing for seamless integration into an existing system while providing the ability to increase security and access control. The rf IDEAS WAVE ID Solo Reader is great for access control applications, and finds itself naturally suited for industries such as healthcare, government, manufacturing, and commercial enterprises. The WAVE ID Solo Reader series is engineered to work with a plethora of proximity cards. Please see compatible cards listed below for details.
Configuration Options
Additional configuration options are available to meet your needs. Visit rf IDEAS WAVE ID Solo LF RFID Reader, rf IDEAS WAVE ID Solo V2 LEGIC HF RFID Reader, or contact us today for more information.
Data Sheet — rf IDEAS WAVE ID Solo HF RFID Reader
What's included?
- rf IDEAS WAVE ID Solo HF RFID Reader
- 6 ft USB Cable
- One Year Standard Manufacturer Warranty
Why buy this reader?
The rf IDEAS WAVE ID Solo is a credential reader developed to exceed stringent secure authentication needs. It streamlines workflows and avoids identification errors by eliminating the need to manually enter usernames and passwords.
Features
- 13.56 MHz.
- Compact Size: 15 x 51 x 86 mm (0.6 x 2.0 x 3.4 in).
- Compatible with Windows XP, 7, 8.1, 10, and Linux Ubuntu.
- Manages employee identification and assembling.
- Ideal for time and attendance, training meetings, and visitor management.
- Eliminates errors associated with individual ID, manual, or keystroke entry.
- Protects and secures sensitive information.
- Ideal applications and industries include: healthcare, access control, libraries, government, and time & attendance.
Compatible Card Technologies
| Compatible Cards | ||
|---|---|---|
|
Item ID |
Item Description |
Card Type(s) |
|
RDR-7081BKU |
WAVE ID Solo HF RFID Reader (HID iCLASS ID# w/ SE Black) |
HID iCLASS CSN, HID iCLASS, HID iCLASS SE, ISO 14443A CSN, ISO 15693 CSN, MIFARE Classic CSN, MIFARE DESFire EV1 CSN, MIFARE Plus CSN, MIFARE Ultralight CSN, LEGIC Advant CSN (ISO 15693 / 14443A), Infineon my-d CSN, I-tag CSN, NFC Type 2 CSN, NFC Type 4 CSN, NXP ICODE SLI CSN, SecuraKey e*tag CSN, Texas Instruments Tag-It CSN |
|
RDR-7581AKU, RDR-7582AKU |
WAVE ID Solo HF RFID Reader (13.56MHz CSN Black) |
HID iCLASS CSN, ISO 14443A CSN, ISO 15693 CSN, MIFARE Classic CSN, MIFARE DESFire EV1 CSN, MIFARE Plus CSN, MIFARE Ultralight CSN, NFC Type 2 CSN, NFC Type 4 CSN |
The rf IDEAS WAVE ID Solo comes in varying models to provide a variety of card technologies for many access control applications and industries. If there is a card technology you need that isn't listed on the rf IDEAS WAVE ID Solo LF RFID Reader page, or within the rf IDEAS catalog, please contact us.
| Product Type: | Fixed Reader |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | ISO 15693 |
| Operating Frequency: | HF (13.56 MHz) |
| Transmit Power: | Not Published |
| Max Receive Sensitvity: | Not Applicable |
| Max Read Distance: | 51 mm (2 in) |
| Max Read Rate: | Not Published |
| Data Interface: | USB |
| GPIO: | Not Published |
| Power Source: | USB Powered, 60 mA Typical, 150 mA Maximum |
| MECHANICAL: | |
| Antenna Ports: | None |
| Dimensions: | 15 x 51 x 86 mm (0.6 x 2.0 x 3.4 in) |
| Weight: | 113 g (0.25 lbs) |
| ENVIRONMENT: | |
| IP Rating: | Not Published |
| Operating Temperature: | –30° to 65°C (–22° to 150°F) |
| APPLICATION INTERFACE: | |
| Host API: | HID Keyboard Emulation or rf IDEAS SDK - Depending on Selection Above |
| Demo Software: | rf IDEAS Configuration Utility |
