*Formerly named PcProx. The WAVE ID is the same great reader - just with a new name.*

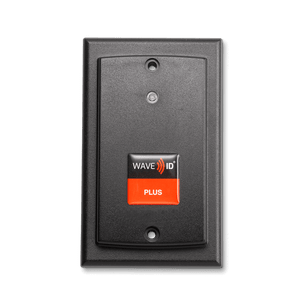

rf IDEAS WAVE ID® Plus IP67 PoE Surface Mount LF/HF RFID Reader
The rf IDEAS WAVE ID Plus maximizes the value of new and existing ID badges by providing simultaneous processing of contactless and proximity smart cards. The WAVE ID Plus can read HID LF tags and HF tags making it an ideal reader for organizations transitioning to HF badges. The surface mount variant features 2 mounting holes and can be easily mounted with 2 screws almost anywhere. This reader uses power over Ethernet (PoE) to receive both power and communication.
This WAVE ID Plus is a keystroke model with a keyboard wedge emulator. On keystroke equipped readers, data read from ID cards is output to the cursors location on the screen. This multi-technology reader delivers flexibility to any customer, integrator, or end user struggling with different card technologies.
This WAVE ID Plus is IP67 compliant, meaning that this reader is completely protected against the ingress of dust as well as water at a depth of 1 m (3 ft) for up to 30 minutes. The IP67 Rating of this reader makes it an ideal choice for LF and HF outdoor access control. The WAVE ID Plus is fully customizable and easy to configure, allowing for seamless integration into an existing system while providing the ability to increase security and access control. The rf IDEAS WAVE ID Plus Reader is great for various access control applications, and finds itself naturally suited for industries such as healthcare, government, manufacturing, and commercial enterprises.
Configuration Options
Additional configuration options are available to meet your needs. Contact us today for more information.
Data Sheet — rf IDEAS WAVE ID® Plus IP67 PoE Surface Mount LF/HF RFID Reader
What's included?
- rf IDEAS WAVE ID Plus IP67 Surface Mount LF/HF RFID Reader
- 6 ft Ethernet Cable
- One Year Standard Manufacturer Warranty
Why buy this reader?
The rf IDEAS WAVE ID Plus IP67 PoE Surface Mount reader is designed to be mounted to surfaces that are exposed to dust and water and supports authentication with nearly all proximity and contactless cards worldwide. The WAVE ID Plus streamlines workflows and avoids identification errors by eliminating the need to manually enter usernames and passwords.
Features
- 125 kHz and 13.56 MHz.
- Compact Size: 109 x 63.5 x 8.9 mm (4.3 x 2.5 x 0.35 in).
- Compatible with Windows XP, 7, 8, 10, Linux Ubuntu and Red Hat, macOS, and Android.
- Auto-tuning for 13.56 MHz antenna, optimizing performance in various environments.
- Manages employee identification and assembling.
- Ideal for enrollment into third-party software or for single sign-on integrators.
- Eliminates errors associated with individual ID, manual, or keystroke entry.
- Protects and secures sensitive information.
- Ideal applications and industries include: healthcare, indoor and outdoor access control, government, and time & attendance.
Compatible Card Technologies
| Compatible Cards | ||
|---|---|---|
|
Item ID |
Item Description |
Card Type(s) |
|
KT-805W1AKB-P-IP67 |
rf IDEAS WAVE ID® Plus IP67 PoE Surface Mount LF/HF RFID Reader |
HID Prox, AWID, CASI-RUSCO, EM 410x (4100/4102/4105/4200), NFC Type 3 CSN (Felica), Honeywell Nexwatch, Indala, Kantech ioProx, HID iCLASS CSN, HID iCLASS, HID iCLASS SE, HID iCLASS Seos, ISO 14443A CSN, ISO 14443B CSN, ISO 15693 CSN, MIFARE Classic CSN, MIFARE DESFire EV1 CSN, MIFARE Plus CSN, MIFARE Ultralight CSN, LEGIC Advant CSN (ISO 15693 / 14443A), aptiQ MIFARE CSN, Bosch ReadyKey Pro UID, Cardax UID, CDVI, CEPAS CAN, Corbin Russwin UID, Cotag, DIGITAG, Dimpna UID, Farpointe Data Pyramid, Farpointe Data Pyramid UID, GProx-II ID, GProx-II UID, HiTag 1 CSN, HiTag 2 CSN, HiTag S CSN, ID Teck (128 Bits), Infineon my-d CSN, ISONAS, I-tag CSN, Keri KC-10x UID, Keri KC-26x, Keri NXT UID, NEDAP Prox, NFC Type 1 CSN (Topaz), NFC Type 2 CSN, NFC Type 4 CSN, NXP ICODE SLI CSN, Oyster CSN, Paradox, Postech, RF Logics UID, Rosslare, SecuraKey e*tag CSN, SecuraKey-02 Radio Key, TechnoGym (Key Fob) CSN, Texas Instruments Tag-It CSN, Urmet, XceedID MIFARE CSN |
The rf IDEAS WAVE ID Plus comes in varying models to provide a variety of card technologies for many access control applications and industries. If there is a card technology you need that isn't listed on the rf IDEAS catalogue, please contact us.
| Product Type: | Fixed Reader |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | ISO 14443 and ISO 15693 |
| Operating Frequency: | LF (125 kHz) and HF (13.56 MHz) |
| Transmit Power: | Not Published |
| Max Receive Sensitvity: | Not Applicable |
| Max Read Distance: | Not Published |
| Max Read Rate: | Not Published |
| Data Interface: | Ethernet |
| GPIO: | Not Published |
| Power Source: | PoE Powered, 70 mA Typical, 150 mA Maximum |
| MECHANICAL: | |
| Antenna Ports: | None |
| Dimensions: | 109 x 63.5 x 8.9 mm (4.3 x 2.5 x 0.35 in) |
| Weight: | 73.7 g (0.16 lbs) |
| ENVIRONMENT: | |
| IP Rating: | IP67 |
| Operating Temperature: | –30° to 65°C (–22° to 150°F) |
| APPLICATION INTERFACE: | |
| Host API: | rf IDEAS SDK |
| Demo Software: | rf IDEAS Configuration Utility |
