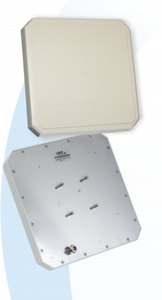

Laird PAL90209H (LHCP) Outdoor RFID Antenna (FCC)
Laird PAL90209H (LHCP) Outdoor RFID Antenna (FCC)
The Laird PAL90209H antenna is a circularly polarized panel antenna that provides reception and transmission of signals in the 902-928 MHz frequency band. The antenna achieves maximum efficiency and performance across the entire frequency band, and is housed in a low profile, IP67 rated enclosure suitable for use in outdoor environments, and is also UL 94-V2 rated for flammability. Both VSWR and axial ratios are excellent and allow the user to achieve the maximum performance for an antenna of this type. The antenna is housed in a heavy duty radome enclosure that can be directly wall mounted. An optional fully articulating mount allows either wall or mast mounting in any configuration.
Data Sheet — Laird PAL90209H (LHCP) Outdoor RFID Antenna (FCC)
Need help selecting the right antenna? Check out our antenna guide.
What's included?
- Laird PAL90209H Antenna Unit
Why buy this antenna?
The Laird PAL90209H RFID Antenna is a high gain, circular polarized antenna that is rugged and weatherproof.
Features
- Low profile.
- Extremely low VSWR and axial ratio.
- Weather and UV resistant radome.
- Wide range of connector options.
- Left hand and right hand CP versions.
- IP 67 rated enclosure for outdoor use.
- UL 94-V2 rated for flammability.
Information
We can supply you with ANY length custom cable with ANY type of connectors. If you don't see the cable you need, please contact us so we can assist you.
| Product Type: | Antenna |
|---|---|
| ELECTRICAL: | |
| Operating Frequency: | FCC (902-928 MHz) |
| Polarization: | Circular |
| Gain: | 9.0 dBic |
| Max Read Distance: | Not published |
| Elevation Beamwidth: | 70° |
| Azimuth Beamwidth: | 70° |
| MECHANICAL: | |
| Connector Type: | N-Type female (connects to N-Type male) |
| Cable: | Not included |
| Mounting: | Threaded stud |
| Dimensions: | 259 x 259 x 33.5 mm (10.2 x 10.2 x 1.32 in) |
| Weight: | 1 kg (2.3 lbs) |
| ENVIRONMENT: | |
| IP Rating: | IP 67 |
| Operating Temperature: | -13° to +70°C (-25° to +158°F) |
