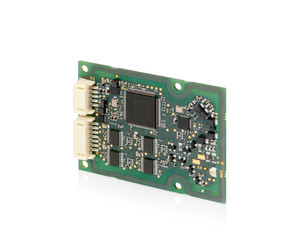

FEIG CPR74-CUSB HF RFID Reader Module | USB Interface

SKU:
4606.000.01

FEIG

UPC:
Product Type:
Reader Module
ELECTRICAL:

Air Interface Protocol:
ISO 14443, ISO 15693, ISO 18000-3M3
Operating Frequency:
HF (13.56 MHz)
Transmit Power:
26.5 dBm (450 mW)
Max Receive Sensitivity:
Not Published
Max Receive Distance:
Not Published
Max Read Rate:
Not Published
Data Interface:
USB Full-Speed (12 MBit/s)
GPIO:
3 Digital Outputs, 2 LED's
Power Source:
5 V DC
MECHANICAL:

Antenna Ports:
One U.FL Connector
Dimensions:
50 x 68 x 8 mm (1.97 x 2.68 x 0.31 in)
Weight:
0.02 kg (0.04 lbs)
ENVIRONMENT:

IP Rating:
Not Published
Operating Temperature:
-25° to 70°C (-13° to 158°F)
APPLICATION INTERFACE:

Host API:
Windows (C++, .NET, Java), Linux (C++, Java)
Demo Software:
ISO-START+
fbt-product:
4733
fbt-product:
4730
fbt-product:
4721
atc-product:
4701
atc-product:
4729
atc-product:
4728
atc-product:
4714

To connect this module to a host PC, the module must be used with a compatible FEIG USB-B Data and Power Cable | For USB/JST.

View Full Description View Items Frequently Bought Together
$210.00
Adding to cart… The item has been added

Need a Quote?

Frequently Bought Together

Please choose options for all selected products

Specs

Description

FEIG CPR74-CUSB HF RFID Reader Module | USB Interface

The FEIG CPR74-CUSB HF RFID Reader Module with USB interface is a compact reader module that is equipped with an integrated antenna multiplexer and internal antenna. The integrated multiplexer enables the internal antenna to be operated with an additional external antenna. The CPR74-CUSB features a "Scan-Mode" which allows for an automatic switch between both antennas. The CPR74-CUSB offers a comfortable and fast interface for access to encrypted data of MIFARE DESFire (EV0, Ev1), MIFARE PLUS and MIFARE Ultralight C.

NOTE: To connect this module to a host PC, the module must be used with a compatible FEIG USB-B Data and Power Cable | For USB/JST PH Interface.

Data Sheet — FEIG CPR74-CUSB HF RFID Reader Module | USB Interface

Data Sheet — FEIG CPR74-CUSB HF RFID Reader Module | USB Interface

Need help selecting the right reader module? Check out our reader module guide.

What's included?

  • FEIG CPR74-CUSB HF RFID Reader Module | USB Interface Unit
  • One Year Manufacturer's Warranty

Why buy this module?

The FEIG CPR74-CUSB HF RFID Reader Module | USB Interface is a flexible reader module, enabling the use of the internal antenna and an external antenna. The CPR74-CUSB is ideal for system operators building contactless solutions through its support of various MIFARE IC families.

Features

  • U.FL connector for external antenna.
  • Support for MIFARE DESFire (EV0, Ev1), MIFARE PLUS, and MIFARE Ultralight C.
  • Support for MIFARE DESFire EV2 or NTAG 424 DNA via a secure communication channel.
  • Supports NFC devices in card emulation mode and Peer-to-Peer.
  • Support for keyboard wedge mode to emulate keyboard keystrokes.
  • Integrated HF antenna.
  • USB interface.
  • Compact design.
Product Type: Reader Module
ELECTRICAL:
Air Interface Protocol: ISO 14443, ISO 15693, ISO 18000-3M3
Operating Frequency: HF (13.56 MHz)
Transmit Power: 26.5 dBm (450 mW)
Max Receive Sensitivity: Not Published
Max Receive Distance: Not Published
Max Read Rate: Not Published
Data Interface: USB Full-Speed (12 MBit/s)
GPIO: 3 Digital Outputs, 2 LED's
Power Source: 5 V DC
MECHANICAL:
Antenna Ports: One U.FL Connector
Dimensions: 50 x 68 x 8 mm (1.97 x 2.68 x 0.31 in)
Weight: 0.02 kg (0.04 lbs)
ENVIRONMENT:
IP Rating: Not Published
Operating Temperature: -25° to 70°C (-13° to 158°F)
APPLICATION INTERFACE:
Host API: Windows (C++, .NET, Java), Linux (C++, Java)
Demo Software: ISO-START+
fbt-product: 4733
fbt-product: 4730
fbt-product: 4721
atc-product: 4701
atc-product: 4729
atc-product: 4728
atc-product: 4714
