Description

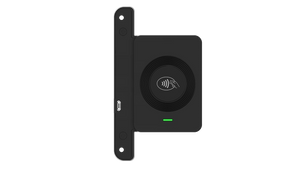

Elo Edge Connect LF/HF RFID Reader
The Elo Edge Connect NFC Reader offers multi-interface support, dual frequency, mobile access, and a flexible mount that allows users to fold the reader behind the touchscreen. This add-on product comes standard with a convenient installation method that reduces the need for external brackets or other accessories.
| Compatible Cards & Protocols | ||
|---|---|---|
|
Item ID |
Frequency |
Card Types & Protocols |
|
E673037 |
High Frequency |
CCID: iCLASS, iCLASS SE/SR, iCLASS Seos, MIFARE Classic 1K/4K, Ultra Light, Ultra Light C, Plus, MIFARE DESFire 0.6, MIFARE DESFIRE EV1/EV2, T=CL, ISO 14443A, ISO1443B CSN, FeliCa, SmartMX with up to 848 kbps transmission rate (depending on card1), ISO 15693 with up to 26 kbps transmission rate (depending on card), Student ID in Apple Wallet Keyboard Wedge: iCLASS, iCLASS SE/SR, iCLASS Seos, MIFARE Classic 1K/4K, Ultra Light, Ultra Ligh C, Plus (Security Lvl 1), MIFARE DESFire 0.6, MIFARE DESFire EV1/EV2 (MAC/DES/3DES/3K3DES/AES), CEPA (CAN), FeliCa (Idm), PIV, ISO 14443B (CSN), Student ID in Apple Wallet |
|
E673037 |
Low Frequency |
HID Prox, Indala Prox, EM Prox (Standard Mode Only), AWID Prox |
Quick Start Guide — Elo Edge Connect LF/HF RFID Reader
What's Included?
- Elo Edge Connect LF/HF Reader Unit
- 2 Mounting Screws
- 2 Pieces of Mela Screw Cover
- Quick Installation Guide
- Two Year Standard Warranty
NOTE: Touchscreen monitor not included. A compatible device must be purchased separately. Contact us for details.
Why buy this reader?
The Elo Edge Connect LF/HF RFID Reader is designed to extend the capabilities and value of your Elo device. This peripheral accessory can be mounted directly to a compatible Elo device.
Features
- 125 kHz and 13.56 MHz.
- Compact size: 119.6 x 68.5 x 29.1 mm (4.71 x 2.7 x 1.15 in).
- Compatible with Windows 7/10, Ubuntu 18.04. Mac OS X, Android 7.x or later.
- CCID and keyboard wedge interface modes.
- Ideal applications and industries include: retail, healthcare, access control, government, and time & attendance.
Compatibility
- Elo I-Series for Android
- Elo I-Series for Windowns
- Elo POS System
- Elo 1002L Touchscreen Monitors
- Elo 1302L Touchscreen Monitors
- Elo 1502L 15.6" Touchscreen Monitors
- Elo 1902L Touchscreen Monitors
- Elo 2002L Touchscreen Monitors
- Elo 2202L Touchscreen Monitors
- Elo 2402L Touchscreen Monitors
- Elo 2702L Touchscreen Monitors
- Elo 3202L Touchscreen Signage
- Elo 3203L Touchscreen Signage
- Elo 4202L Touchscreen Signage
- Elo 4303L Touchscreen Signage
- Elo 4602L Touchscreen Signage
- Elo 5053L Touchscreen Signage
- Elo 5502L Touchscreen Signage
- Elo 5503L Touchscreen Signage
- Elo 5553L Touchscreen Signage
- Elo 6553L Touchscreen Signage
| Product Type: | Fixed Reader |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | ISO 14443 (Type A & B) |
| Operating Frequency: | LF (125 kHz) and HF (13.56 MHz) |
| Transmit Power: | Not Published |
| Max Receive Sensitivity: | Not Published |
| Max Read Distance: | Not Published |
| Max Read Rate: | Not Published |
| Data Interface: | USB 2.0 |
| GPIO: | Not Published |
| Power Source: | 5VDC ± 5% Power Supply |
| MECHANICAL: | |
| Antenna Ports: | None |
| Dimensions: | 119.6 x 68.5 x 29.1 mm (4.71 x 2.7 x 1.15 in) |
| Weight: | 0.075 kg (0.165 lbs) |
| ENVIRONMENT: | |
| IP Rating: | Not Published |
| Operating Temperature: | 10° to 40°C (50° to 104°F) |
| APPLICATION INTERFACE: | |
| Host API: | Elo SDK |
| Demo Software: | Included |
