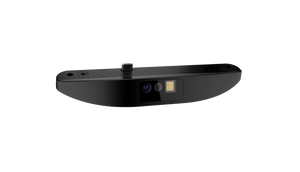

Elo Edge Connect 2D Barcode Scanner

SKU:
E245047

Elo

UPC:
Product Type:
Barcode Scanner
ELECTRICAL:

Scanner:
SE4107 1D/2D Scan Engine or SE4720 1D/2D Scan Engine
Data Interface:
SNAPI
Power Source:
Not Published
SCAN PERFORMANCE:

Scan Mode:
Presentation Mode, Beep on Scan, Set Up to Read the Most Common Codes
Scan Pattern:
Not Published
Sensor Resolution:
SE4107: 1280 x 960
SE4720: 1280 x 800
Imager Field of View:
Horizontal: 48°, Vertical: 30°
Minimum Print Contrast:
Not Published
1D Decode Capabilities:
All Major 1D
2D Decode Capabilities:
PDF417, MicroPDF417, Data Matrix, MaxiCode*, QR Code, Micro QR Code, Aztec, Grid Matrix*, DotCode*, Macro PDF
Postal Decode Capabilities:
US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), Mailmark
Laser Classification:
LED Illumination, LED Aimer Dot
MECHANICAL:

Dimensions:
118.5 x 35.46 x 20.60 mm (4.67 x 1.40 x 0.81 in)
Weight:
0.032 kg (0.071 lb)
ENVIRONMENT:

Drop Specification:
Not Published
IP Rating:
Not Published
Operating Temperature:
10° to 40°C (50° to 104°F)
View Full Description View Items Frequently Bought Together
MSRP: $261.00
$256.00
(You save $5.00 )
Adding to cart… The item has been added

Need a Quote?

Frequently Bought Together

Please choose options for all selected products

  • Choose Options
Specs

Description

Elo Edge Connect 2D Barcode Scanner

The Elo Edge Connect 2D Barcode Scanner easily integrates with a variety of Elo touchscreens. This fast, hands-free device provides rapid and accurate scanning of barcodes including linear barcodes and QR codes. Whether on paper, etched into a product or on a mobile screen, this scanner returns quick and reliable results.

NOTE: The Edge Connect 2D Barcode Scanner  is unavailable with UHF RFID technology. This scanner reads 1D and 2D barcodes, but does not have UHF capabilities.

Data Sheet  Elo Edge Connect 2D Barcode Scanner

Data Sheet — Elo Edge Connect 2D Barcode Scanner

Quick Start Guide — Elo Edge Connect 2D Barcode Scanner

Quick Start Guide - Elo Edge Connect 2D Barcode Scanner

What's Included?

  • Elo Edge Connect 2D Barcode Scanner Unit
  • 2 Mounting Screws
  • Quick Installation Guide
  • Two Year Standard Warranty

Why buy this scanner?

Built on the Elo Edge Connect platform, this 2D barcode scanner can be easily integrated with a variety of Elo touchscreens. Simply attach and get started.

Features

  • Modular design.
  • Easily integrated with a variety of Elo touchscreens.
  • Rapid and accurate scanning of barcodes, including linear barcodes and QR code.
  • Ideal industries retail, hospitality, government, restaurant, and industrial.

Compatibility

  • Elo I-Series for Android
  • Elo I-Series for Windowns
  • Elo POS System
  • Elo 1002L Touchscreen Monitors
  • Elo 1302L Touchscreen Monitors
  • Elo 1502L 15.6" Touchscreen Monitors
  • Elo 1902L Touchscreen Monitors
  • Elo 2002L Touchscreen Monitors
  • Elo 2202L Touchscreen Monitors
  • Elo 2402L Touchscreen Monitors
  • Elo 2702L Touchscreen Monitors
  • Elo 3202L Touchscreen Signage
  • Elo 3203L Touchscreen Signage
  • Elo 4202L Touchscreen Signage
  • Elo 4303L Touchscreen Signage
  • Elo 4602L Touchscreen Signage
  • Elo 5053L Touchscreen Signage
  • Elo 5502L Touchscreen Signage
  • Elo 5503L Touchscreen Signage
  • Elo 5553L Touchscreen Signage
  • Elo 6553L Touchscreen Signage
Product Type: Barcode Scanner
ELECTRICAL:
Scanner: SE4107 1D/2D Scan Engine or SE4720 1D/2D Scan Engine
Data Interface: SNAPI
Power Source: Not Published
SCAN PERFORMANCE:
Scan Mode: Presentation Mode, Beep on Scan, Set Up to Read the Most Common Codes
Scan Pattern: Not Published
Sensor Resolution: SE4107: 1280 x 960
SE4720: 1280 x 800
Imager Field of View: Horizontal: 48°, Vertical: 30°
Minimum Print Contrast: Not Published
1D Decode Capabilities: All Major 1D
2D Decode Capabilities: PDF417, MicroPDF417, Data Matrix, MaxiCode*, QR Code, Micro QR Code, Aztec, Grid Matrix*, DotCode*, Macro PDF
Postal Decode Capabilities: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), Mailmark
Laser Classification: LED Illumination, LED Aimer Dot
MECHANICAL:
Dimensions: 118.5 x 35.46 x 20.60 mm (4.67 x 1.40 x 0.81 in)
Weight: 0.032 kg (0.071 lb)
ENVIRONMENT:
Drop Specification: Not Published
IP Rating: Not Published
Operating Temperature: 10° to 40°C (50° to 104°F)
