Description

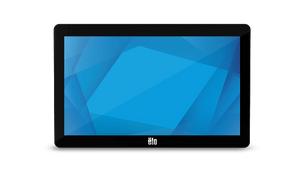

Elo 1502L 15.6" Touchscreen Monitor
The Elo 1502L 15.6-inch touchscreen monitor delivers a professional-grade interactive solution. It features Elo’s industry-leading TouchPro® PCAP technology with edge-to-edge glass enabling up to 10 simultaneous touches. Backed by a three-year warranty, this feature rich monitor offers a sleek, low-profile, commercial-ready solution with dual built-in speakers and USB Type B or C or VGA and HDMI video connectors. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party kiosk enclosures, this flexible touchscreen monitor can be integrated with ease.
Data Sheet — Elo 1502L 15.6" Touchscreen Monitor
What's included?
- Elo 1502L 15.6" Touchscreen Monitor Unit
- Three Year Standard Warranty (Three Year or Five Year Advance Unit Replacement Warranty Available)
- Quick Install Guide
- HDMI Cable
- Power Brick
- Cable Clamps
- Tie Wraps
- EEI Label
- USB Type-A to Type-C Cable, NA & EU Power Cables, and Screws - *Full HD Models Only
- Mini-VGA to VGA Cable, USB Cable, and Audio Cable - *HD Models Only
- Stand, if selected above
Why buy this monitor?
Offering a compact form factor and flexible mounting options, the Elo 1502L is well-suited for POS, self-service, signage, and customer-facing point of interaction. This touchscreen monitor features Elo's industry-leading TouchPro® PCAP technology with wide viewing angles and impeccable image clarity, resolution, and light transmission. With up to 10 touches enabled, the Elo 1502L provides a tablet-like experience across a wide variety of applications.
Features
- 15.6-inch LCD touchscreen monitor.
- Compact form factor and sleek design for easy integration.
- Single cable connection.
- Edge-to-edge design with integrated 10-touch.
- Compatible with use of finger, glove, and stylus.
- Multiple mounting options.
- Anti-glare surface built to withstand the rigors of continued public use.
- Common applications: retail, hospitality, government, restaurant, and industrial.
Elo Advance Unit Replacement Warranty
Minimize operational disruptions and ensure peace of mind with Elo's three year or five year Advance Unit Replacement Warranty services. In the event your device requires service, all you have to do is submit a Return Material Authorization (RMA) request through Elo's online portal. If phone support does not resolve the issue, Elo will ship you a replacement unit next business day.
NOTE: Advance Unit Replacement coverage is available wherever Elo devices are sold in the United States. This coverage must be purchased within one year of your equipment purchase. Purchase of this warranty enhances the device standard warranty, resulting in a coverage of three (3) or five (5) years total. Contact us today for more details.
Recommended Accessories
The following accessories are available for the Elo 1502L 15.6" Touchscreen Monitor. Contact us today for more detailed information on these accessories.
- Elo Wall Mount
- Elo Edge Connect 2D Barcode Scanner
- Elo Edge Connect LF/HF RFID Reader
- Elo EMV Cradles
- Elo Tabletop Stands
- Elo Pole Stands
- Elo Flip Stands
- Elo Pole Mount Bracket
- Elo Shelf Mount
- Elo Edge Connect Fingerprint Scanner
- Elo Edge Connect Magnetic Stripe Reader
- Elo Edge Connect Status Light
- Elo Edge Connect Webcam
- Elo Backpack 4 for Android
- Elo Backpack for Linux
- Elo Edge Connect Speaker Bar
- Elo VFD Customer Display
| Product Type: | Monitor |
|---|---|
| DISPLAY: | |
| Touch Technology: | TouchPro PCAP |
| Touch Capacity: | 10-Touch |
| LCD Technology: | Active Matrix TFT LCD |
| Diagonal Size: | 419.1 mm (15.6 in) Diagonal |
| Monitor Thickness: | 32.5 mm (1.28 in) Panel Depth |
| Aspect Ratio: | 16:9 |
| Number of Colors: | 16.7M |
| Brightness: | Full HD: Panel -250 nits; PCAP + DC power - 25 nits; PCAP + USB-C 5V power - 180 nits HD: Panel - 220 nits; PCAP + DC power - 198 nits |
| Active Area: | 344.16 x 193.5 mm (13.55 x 7.62 in) |
| Resolultion: | Full HD: 1920 x 1080 HD: 1366 x 768 |
| Response Time: | Full HD: 30 ms HD: 10 ms |
| Viewing Angle: | Full HD: Horizontal: +/-80° / 160° Total; Vertical: +/-80° / 160° Total HD: Horizontal: ±45° / 90° Total; Vertical: -35°/+15° / 50° Total |
| Contrast Ratio: | Full HD: 700:1 HD: 400:1 |
| ELECTRICAL: | |
| Data Interface: | USB, Audio Jack, HDMI, Mini-VGA, Micro-USB |
| Power Source: | USB, External Power Supply |
| Speakers: | 2 x 2W Internal Speakers |
| MECHANICAL: | |
| Mounting: | VESA 4-hole 75mm and 100mm Mounting Interface on Rear of Unit |
| Dimensions: | Without Stand: 244.39 x 386.96 x 32.4 mm ( 9.62 x 15.23 x 1.28 in) With Stand: 284.65 x 386.96 x 199.12 mm (11.21 x 15.23 x 7.84 in) |
| Weight: | Without Stand: 1.64 kg (3.62 lbs) With Stand: 3.05 kg (6.72 lbs) |
| Color: | Black |
| ENVIRONMENT: | |
| IP Rating: | IPX1 for Front Side |
| Operating Temperature: | 0° C to 40° C (32° F to 104° F) |
