What is a Clearance Product?
What is a Clearance Product?
Clearance Products are high-quality RFID items offered at deeply discounted prices. Our broad range of Clearance products include brand-new, discontinued, end of stock, returned, and lightly-used demo items offered at a reduced price. All Clearance products have been tested and are fully functional. Due to exceptional pricing, all Clearance products are final sale and may not be returned or exchanged.
Note: Supplies are limited to inventory on hand. Clearance products may have minor cosmetic smudges or may be missing original packaging.

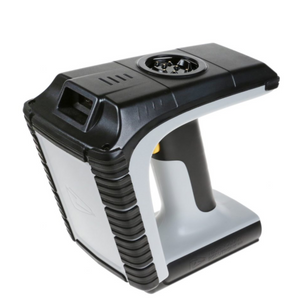

TSL 2166 Bluetooth Rugged UHF RFID Reader | With Imager [Clearance]
TSL’s new 2166 Bluetooth® Rugged UHF RFID reader provides high performance UHF RFID reading in a tough and rugged form factor. The 2166 UHF RFID Reader features the new TSL® ePop-Loq® connector. The ePop-Loq® system allows data and charge connections to be passed from the reader to an attached device, such as a smartphone or handheld terminal. It also safely separate when the reader is subject to large impacts, such as when dropped.
The reader is highly resistant to water, dust and mechanical trauma. A high capacity battery enables non-stop operation of the reader over the full working day. Designed to read and write to EPC Class 1 Gen 2 (ISO18000-6C) tags, this 2166 includes class leading high performance 2D data scanning to bring unparalleled data collection capabilities to any host it is connected to. Use existing Bluetooth® wireless technology enabled 1 host devices including Enterprise Handhelds, Consumer Phones, Touchscreen MP3 players, Tablets and PC’s – the 2166 will bring high performance RFID and 2D scanning to all these devices running a wide range of Operating Systems. Extensive software support is available for a wide range of platforms including code samples, demonstration applications and source code.
The 2166 Rugged Bluetooth® UHF RFID reader incorporates TSL’s unique ASCII protocol for faster and easier application development. This sophisticated parameterised ASCII protocol provides the developer a powerful set of commands that carry out multiple actions locally within the reader. This approach enables multiple tag operations executed using simple pre-configured ASCII commands which not only speeds integration of the reader into applications but also abstracts the developer from some of the complexities of the underlying Native API and ultimately results in un-paralleled levels of performance.
Data Sheet — TSL 2166 Bluetooth Rugged UHF RFID Reader | With Imager [Clearance]
Need help selecting the right reader? Check out our reader guide.
What's included?
- TSL 2166 Bluetooth Rugged UHF RFID Reader | With Imager [Clearance] Unit
- Removable, rechargeable Lithium Ion battery pack
- Charging Docking Station Kit, if selected above (Please note that using a non-manufacturer approved power supply voids the warranty)
Why buy this reader?
Featuring the new TSL ePop-Loq connector, the TSL 2166 Bluetooth Rugged UHF RFID Reader provides high performance UHF RFID reading/writing with all host devices. The TSL 2166 is both water-resistant and dust-proof to IP67, and can withstand multiple drops of two meters to concrete. Equipped with a high capacity battery, the TSL 2166 enables non-stop operation over the full working day.
Features
- Bluetooth Version 4.2 technology.
- High performance UHF RFID reading / writing with all host devices.
- Highly resistant to water, dust, and mechanical trauma.
- A range of barcode engines can be specified to provide 2D data capture at distances of up to 9 m.
- Store millions of tags and barcodes with date and time stamping.
- A high capacity battery enables non-stop operation of the reader over the full working day.
- Works with all software that has been developed for TSL Bluetooth® UHF RFID Readers.
- Operates with Android, iOS, Windows 10, 8, 7, Vista, XP, Windows Mobile, Windows CE, and Windows Phone 8.
Information
Note: The TSL 2166 Bluetooth Rugged UHF RFID Reader requires a separate purchase of either the TSL 1166/2166/3166 Docking Station & Line Cord (US or EU, depending on region selected) or the TSL External Battery Charger to charge the reader.
Certified Regions and Geographies
The 2166 is available for purchase and operation in the United States, Canada, Guam, Ecuador, Guatemala, Puerto Rico, Northern Mariana Islands (FCC, 2166-AX1/2166-AS1); Albania, Andorra, Austria, Belgium, Bhutan, Bosnia & Herzegovina, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Falkland Islands, Finland, France, French Guiana, Georgia (License Required), Germany, Greece, Greenland, Guernsey, Guadeloupe, Hungary, Iceland, Ireland, Italy, Jersey, Latvia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Malta, Martinique, Monaco, Montenegro, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Spain, Sweden, Switzerland, United Kingdom, and Zimbabwe (ETSI, 2166-EX1/2166-ES1); Bangladesh (BD, 2166-AX1-BD/2166-AS1-BD); and Columbia (CO, 2166-AX1-CO/2166-AS1-CO).
Recommended Accessories
The following recommended or replacement accessories are available for the TSL 2166 Bluetooth Rugged UHF RFID Reader. Contact us today for more detailed information about these accessories.
- TSL ePop-Loq Device Mounts
- TSL 1166/2166/3166 Docking Station Kit & Line Cord (US)
- TSL 1166/2166/3166 Docking Station Kit & Line Cord (EU)
- TSL 1166/2166/3166 Docking Station Kit & Line Cord (UK)
- TSL 1166/2166/3166 Region Specific Line Cord (US, EU, and UK)
- TSL 1166/2166/3166 Spare Battery
Product Type: | Handheld Reader |
---|---|
ELECTRICAL: | |
Air Interface Protocol: | EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C) |
Operating Frequency: | US (902-928 MHz) |
Antenna Type: | Circularly polarized |
Max Read Distance: | Up to 9 m (29.5 ft) |
Scanner: | 2D Imager |
Operating System: | Android, iOS, Windows CE, Windows Phone 8, Windows Mobile, Windows 10, 8,7, Vista, and XP. (Host device must have Bluetooth® wireless technology functionality) |
Data Interface: | USB, Bluetooth Version 4.2 |
Memory/Expansion Memory: | Embedded 4GB internal NAND storage |
Power Source: | Removable, rechargeable lithium ion battery pack (11.25V, 2950mAh, 33.2Wh) |
Camera: | Not published |
MECHANICAL: | |
Dimensions: | 177 x 94 x 170 mm (6.97 x 3.7 x 6.7 in) |
Weight: | 0.86 kg (1.90 lbs) - including battery |
ENVIRONMENT: | |
IP Rating: | IP 67 |
Operating Temperature: | -10° to +55°C (14° to +131°F) |
APPLICATION INTERFACE: | |
Host API: | ASCII 2 |
Demo Software: | SmartWedge |
