Description
*Formerly sold under the brand Confidex. This is the same great tag - just with a new name.*

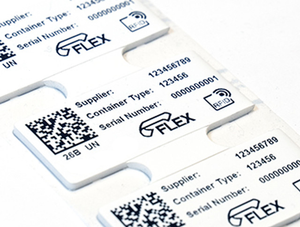

Beontag Steelwave Flex UHF RFID Label | M780
Beontag Steelwave Flex UHF RFID Labels connect the high-value components automatically to electronic data interface (EDI). This makes component tracking error-free and gives real-time data about the inventories. By that way Tier 1 part suppliers, OEM’s, and logistics providers can further optimize the inventory levels and gain resource savings. These labels are designed to match with wide variety of components – whether the component is plastic, metal, flat, or curved. Their flexible structure and strong background adhesive provides a durable identification method for components ranging from car batteries to plastic parts. Additionally, Beontag Steelwave Flex are personalized with customers’ data. This can mean for example VDA, Verband der Automobilindustrie, standard compatible encoding of the IC and visual marking of the label’s surface. All this ensure interoperability among the automotive supply chain’s different players so that the components can be automatically connected to the electronic data interface (EDI).
Data Sheet — Beontag Steelwave Flex UHF RFID Label | M780
Need help selecting the right tag? Check out our tag guide.
Why buy this tag?
Equipped with flexible attachment on curved assets, the Beontag Steelwave Flex is a global and compact UHF RFID label optimized for metallic surfaces making it an ideal solution for component logistics applications.
Features
- Global and compact UHF RFID label.
- Reliable identification of high-value assets.
- Personalized with VDA-compatible data, ready for EDI.
- Flexible, IP 68 rated UHF RFID label optimized for metallic surfaces.
- Label can be attached on a curved surface with smallest diameter of 50mm.
- Excellent adhesion to all surfaces including low surface energy plastics and painted metal.
- Common applications: asset management, logistics and supply chain, industrial manufacturing, and automotive.
Printer Compatibility
- Zebra Custom ZT410 RFID Silverline Label Printers - Encoders
- Zebra ZT411 On-Metal RFID Printers
- Resin Ribbon recommended.
| Product Type: | Tag |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | EPCglobal UHF Gen 2v2 |
| Operating Frequency: | Global (865–928 MHz) |
| IC Type: | Impinj M780 |
| Memory: | EPC 496 Bit, User 128 Bit, TID 96 Bit |
| Max Read Distance - On Flat Metal: | Up to 8 m (26 ft) |
| Max Read Distance - On Ø50mm Radius Metal: | Up to 8 m (26 ft) |
| Max Read Distance - On Plastic (FCC): | Up to 5 m (16 ft) |
| Max Read Distance - On Plastic (ETSI): | Up to 2 m (6 ft) |
| Applicable Surface Materials: | All Surfaces, Optimized for Metal |
| MECHANICAL: | |
| Tag Form Factor: | Label |
| Tag Materials: | Specially Coated PP (white) |
| Recommend Ribbon: | Full Resin |
| Attachment Method: | High Tack Adhesive |
| Dimensions: | 55 x 25 x 2.2 mm (2.17 x 0.98 x 0.087 in) |
| Weight: | 1 g |
| ENVIRONMENT: | |
| Operating Temperature: | -35°C to +85°C (-31°F to +185°F) |
