*Formerly sold under the brand Confidex. This is the same great tag - just with a new name.*

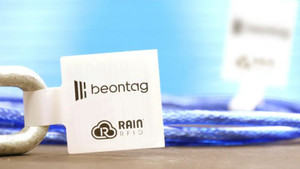

Beontag LoopTag RFID Label | Monza 4E
The Beontag LoopTag is designed for hard-to-tag items such as tubes and wires. This printer friendly label is optimized to work on both metallic and plastic items. Featuring the Impinj Monza 4E IC, the LoopTag is equipped with 496 bits of EPC memory, 128 bits of User memory, and 96 bits of TID memory.
Data Sheet — Beontag LoopTag RFID Label | Monza 4E
Need help selecting the right tag? Check out our tag guide.
Why buy this tag?
The Beontag LoopTag is a printable and versatile UHF RFID label designed to increase asset tracking visibility. Available in two sizes, 150 mm (5.91 in) and 250 mm (9.84 in), the LoopTag can be used to tag assets with various diameters.
Features
- 150 mm (5.91 in) or 250 mm (9.84 in) UHF RFID label - depending on selection above.
- Loop fits around a wide variety of diameters.
- Read range of up to 7 m (23 ft) when on metal.
- Can be attached to tubes and wires.
- IP 68 rated, survives 5 hours underwater.
- Increases asset visibility for easier asset location and management.
- Resistant to cleaning solvents and chemical mixtures.
- Common applications: asset management, logistics and supply chain, industrial manufacturing, and automotive.
| Product Type: | Tag |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | EPCglobal UHF Class1 Gen2 (ISO 18000-6C) |
| Operating Frequency: | Global (865-928 MHz) |
| IC Type: | Impinj Monza 4E |
| Memory: | EPC 496 Bit, TID 96 Bit, User 128 Bit |
| EPC Memory Content: | Same EPC by Default |
| Max Read Distance - Metal Pipe: | Up to 7 m (23 ft) |
| Max Read Distance - Plastic Pipe: | Up to 5 m (16 ft) |
| Applicable Surface Materials: | All Materials |
| MECHANICAL: | |
| Tag Form Factor: | Label |
| Tag Materials: | Printable White PET (Thermal Transfer) |
| Recommended Ribbon: | Resin Ribbon |
| Attachment Method: | Strap With Permanent Adhesive for Wrapping |
| Dimensions: | 150 x 33 x 0.2 mm (5.91 x 1.30 x 0.01 in) or 250 x 33 x 0.2 mm (9.84 x 1.30 x 0.01 in) - Depending on Selection Above |
| Weight: | 1 g |
| ENVIRONMENT: | |
| Operating Temperature: | -40°C to +85°C (-40°F to +185°F) |
