Description
*Formerly sold under the brand Confidex. This is the same great tag - just with a new name.*

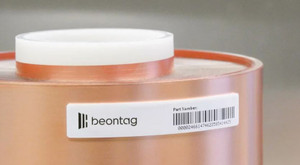

Beontag Ferrowave Classic RFID Label | NXP UCODE 8
The Beontag Ferrowave Classic RFID Label is optimized for high volume packaging and component tracking applications that require lower cost, on-metal RFID labels for non-harsh industrial environments. Purpose-built and cost-engineered for tagging automotive components and consumer packages, the Beontag Ferrowave is the RFID label of choice for metallic foils and liquid containers which have historically presented challenges to RFID labels.
Data Sheet — Beontag Ferrowave Classic RFID Label | NXP UCODE 8
Need help selecting the right tag? Check out our tag guide.
Why buy this tag?
The Beontag Ferrowave Classic is a low-cost, on-metal RFID label - optimized for packaging and component tracking. With an on-metal read range around 16 ft, these thin, metal-mount labels can be applied to flat or curved surfaces to accurately track metallic components in industries like automotive manufacturing, healthcare, logistics, and select, non-rugged construction environments.
Features
- Equipped with the NXP UCODE 8 integrated circuit.
- Cost-engineered structure.
- High-quality UHF RFID label.
- IP 68 rated.
- Large printing area for visual markings.
- Optimized for high-volume logistics and other component tracking applications.
Printer Capability
- SATO CL4NX Series Thermal UHF RFID Printers
- Zebra Custom ZT410 Silverline RFID Label Printer - Encoders
- Zebra ZT411 On-Metal RFID Printers
- TSC Printronix T6000e Printers UHF RFID Industrial Printers | 4-Inch Print Width
- TSC Printronix T4000 UHF RFID Industrial Printers
| Product Type: | Tag |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | EPCglobal UHF Gen2v2 |
| Operating Frequency: | FCC (902-928 MHz), ETSI (865-869 MHz) |
| IC Type: | NXP UCODE 8 |
| Memory: | EPC 96 Bit, User 32 Bit, TID 96 Bit |
| EPC Memory Content: | Unique Random EPC in Every Label |
| Max Read Distance - Metal: | FCC: Up to 5 m (16 ft) ETSI: Up to 4 m (13 ft) |
| Max Read Distance - Liquid: | Up to 1 m (3 ft) |
| Max Read Distance - Plastic: | Up to 3 m (10 ft) |
| Max Read Distance - Glass: | FCC: Up to 5 m (16 ft) ETSI: Up to 7 m (23 ft) |
| Max Read Distance - Cardboard: | Up to 2 m (7 ft) |
| Application Surface Materials: | All Surfaces Including Metal, Liquid, Plastic, Glass, and Cardboard |
| MECHANICAL: | |
| Tag Form Factor: | Label Tag |
| Tag Materials: | Printable White PET (Thermal Transfer) |
| Recommended Ribbon: | Resin Ribbon |
| Attachment Method: | High-Performance Acrylic Adhesive |
| Dimensions: | 100 x 17 x 1.1 mm (3.94 x 0.67 x 0.04 in) |
| Weight: | 0.8 g |
| ENVIRONMENT: | |
| Operating Temperature: | -35°C to +85°C (-31°F to +185°F) |
