Description
*This product must be purchased at the Minimum Order Quantity (MOQ). The MOQ for this product is 100,381 tags. Contact us for details.*

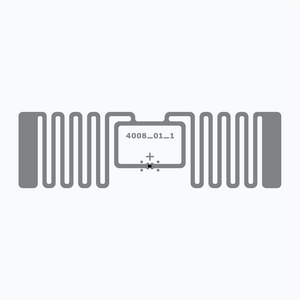

Avery Dennison Smartrac Stealth RFID Paper Tag | M830
Avery Dennison Smartrac Stealth RFID Paper Tags are optimized for outstanding read performance in the apparel and general retail categories. The AD Stealth is a refresh of the AD Web design and uses the new M830 IC, containing 128 bits of EPC memory, a 96-bit unique factory locked TID number, and a 48-bit unique serial number that is factory-encoded into the TID. The AD Stealth uses a new compact design that accommodates a wide variety of media options including pressure sensitive labels, hangtags, and price tickets. Enabling global IoT deployments, the improved Impinj M830 IC offers reliable readability even for small tags at high volume. The M830 IC is compatible with the Global GS1 UHF Gen2v2 standard and has a protected mode that enables loss prevention and protects consumer privacy. Equipped with Impinj's AutoTune V3, this Stealth Paper Tag tunes itself to optimize RF energy harvesting across the entire UHF global frequency range.
| Tag Variations | ||
|---|---|---|
|
IC Type & Memory |
Form Factor |
Product Code |
| M830 EPC 128 Bits, User 0 Bits, TID 96/48 Bits |
Wet Inlay | IL-610622 |
| Paper Tag | IL-610623 | |
| M850 EPC 96 Bits, User 32 Bits, TID 96/48 Bits |
Wet Inlay | IL-610625 |
| Paper Tag | IL-610626 | |
Data Sheet — Avery Dennison Smartrac Stealth RFID Paper Tag | M830
Need help selecting the right tag? Check out our tag guide.
Why buy this tag?
The Avery Dennison Smartrac Stealth RFID Paper Tag with the Impinj M830 IC offers improved readability, reliability, and range when compared to previous IC models. The Stealth RFID Paper Tag is a compact tag that is a great fit for tagging item level merchandise as well as tagging automotive and logistics items.
Features
- Impinj connected tag.
- ARC Certified in categories F, I, L, O, Q, R, W5, W6, and Y2.
- Global (860-960 MHz).
- Core diameter of 76 mm (3 in).
- Die-cut size: 53 x 17.5 mm (2.08 x 0.68 in).
- Memory: EPC 128 Bits, TID 96/48 Bits.
- Impinj's AutoTune V3 maximizes performance across various environments.
- Protected mode enables loss prevention and protects consumer privacy.
- Manufactured to the highest quality standard with significant ARC accreditation for quality as confirmed by Auburn University.
- Common applications: automotive, retail, beauty products, and logistics.
| Product Type: | Tag |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | EPC Class 1 Gen 2 (ISO 18000-63) |
| Operating Frequency: | Global (860-960 MHz) |
| IC Type: | Impinj M830 |
| Memory: | EPC 128 Bits, User 0 Bits, TID 96/48 Bits |
| EPC Memory Content: | Unique, Auto-Serialized |
| Max Read Distance: | Up to 14 m (46 ft) |
| Applicable Surface Materials: | Plastic, Cardboard, Glass |
| ARC Approved Categories: | F, I, L, O, Q, R, W5, W6, Y2 |
| MECHANICAL: | |
| Tag Form Factor: | Paper Tag |
| Tag Materials: | Mid-Gloss Paper |
| Recommended Ribbon: | Not Published |
| Attachment Method: | Adhesive |
| Dimensions: | 53 x 17.5 mm (2.08 x 0.68 in) |
| Weight: | 1 g |
| ENVIRONMENT: | |
| Operating Temperature: | -40° to +85°C (-40° to +185°F) |
