Description
*This product must be purchased at the Minimum Order Quantity (MOQ). The MOQ for this product is 102,400 tags. Contact us for details.*

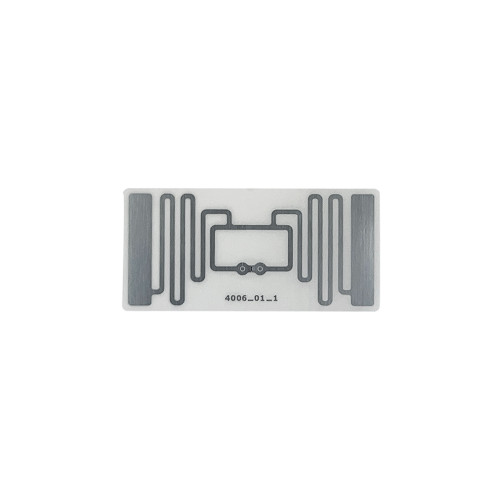

Avery Dennison Smartrac Sonic RFID Paper Tag | M830
The Avery Dennison Smartrac Sonic RFID Paper Tag provides outstanding read performance in the apparel and general retail categories. The AD Sonic is manufactured according to the industry’s highest quality standards, as confirmed by the RFID Lab at Auburn University. It is is on the approved inlay list by Auburn University's RFID Lab ARC Program for use in retail applications and meets the category performance requirements for ARC specifications F, I, L, O, Q, R, W5, W6, and Y2. Equipped with the Impinj M830 IC, this tag offers 128 bits of EPC memory, a 96-bit unique factory locked TID number, and a 48-bit unique serial number that is factory-encoded into the TID.
| Tag Variations | ||
|---|---|---|
|
IC Type & Memory |
Form Factor |
Product Code |
| M830 EPC 128 Bits, User 0 Bits, TID 96/48 Bits |
Wet Inlay | IL-610473 |
| Paper Tag | IL-610470 |
|
Data Sheet — Avery Dennison Smartrac Sonic RFID Paper Tag | M830
Need help selecting the right tag? Check out our tag guide.
Why buy this tag?
The Avery Dennison Smartrac Sonic RFID Paper Tag features a 44 x 20 mm (1.732 x 0.787 in) antenna size for ease in converting into end-use applications. Ideally suited for supply chain, inventory, and logistics applications, the AD Sonic is a compact, robust, and high-performing solution.
Features
- Impinj connected tag.
- ARC Certified in categories F, I, L, O, Q, R, W5, W6, and Y2.
- Global (860-960 MHz).
- Core diameter of 76 mm (3 in).
- Die-cut size: 46 x 22 mm (1.81 x 0.87 in).
- Memory: EPC 128 Bits, TID 96/48 Bits.
- Offers reliable reading of small tags at high volume and speed.
- Compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management.
- Common applications: apparel, general retail, supply chain, and logistics.
| Product Type: | Tag |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | ISO/IEC 18000-63 Type C |
| Operating Frequency: | Global (860-960 MHz) |
| IC Type: | Impinj M830 |
| Memory: | EPC 128 Bits, User 0 Bits, TID 96/48 Bits |
| EPC Memory Content: | Unique, Auto-Serialized |
| Max Read Distance: | Up to 20 m (65.6 ft) |
| Applicable Surface Materials: | Non-Metallic Surfaces, Plastic, Cardboard, Glass |
| ARC Approved Categories: | F, I, L, O, Q, R, W5, W6, Y2 |
| MECHANICAL: | |
| Tag Form Factor: | Paper Tag |
| Tag Materials: | Mid-Gloss Paper |
| Recommended Ribbon: | Not Published |
| Attachment Method: | Adhesive |
| Dimensions: | 46 x 22 mm (1.81 x 0.867 in) |
| Weight: | 1 g |
| ENVIRONMENT: | |
| Operating Temperature: | -40° to +85°C (-40° to +185°F) |
