Description
*Subject to availability. Please contact us for an alternative product.

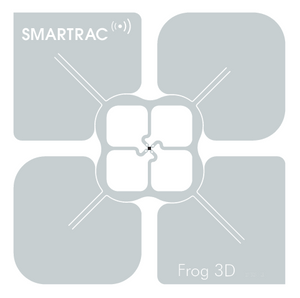

Avery Dennison Smartrac Frog 3D RFID Paper Face Tag 76mm | Monza 4D
Avery Dennison Smartrac Frog 3D tags and inlays are designed for pallet and case level applications offering high performance in supply chain management applications. Frog 3D products have a small, cost-efficient True3D form factor with complete orientation insensitivity providing consistent performance even on challenging materials. These high performance inlays deliver excellent read range and are compatible with Impinj Monza 4 IC family. Frog 3D tags and inlays are produced using leading edge inlay assembly technologies. Monitoring every step in the production process, from the antenna to the final assembly of the inlay, guarantees optimal quality products.
Data Sheet — Avery Dennison Smartrac Frog 3D RFID Paper Face Tag 76mm | Monza 4D
Need help selecting the right tag? Check out our tag guide.
Why buy this tag?
The Avery Dennison Smartrac Frog UHF RFID Tag is an orientation-insensitive, high performance product for pallet and case-level applications. It is optimized for corrugated, plastic and highly detuning materials and is Walmart, DoD and METRO Group compliant. It is a larger version of the Avery Dennison Smartrac Frog RFID Wet Inlay 53mm | Monza 4D.
Features
- True3D design with complete orientation insensitivity.
- Consistent and robust performance on various materials globally.
- Available in a small and cost-effective form factor.
- ISO 9001:2008 Quality Management System and ISO 14001:2004 Environment Management System support.
| Product Type: | Tag |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C) |
| Operating Frequency: | Global (860-960 MHz) |
| IC Type: | Impinj Monza 4D |
| Memory: | EPC 128 bits, User 32 bits |
| EPC Memory Content: | Not guaranteed unique |
| Max Read Distance: | > 9m (29 ft) |
| Applicable Surface Materials: | Plastic, cardboard, glass |
| MECHANICAL: | |
| Tag Form Factor: | Paper Face |
| Tag Materials: | Mid-gloss paper |
| Recommended Ribbon: | Wax-Resin |
| Attachment Method: | Permanent pressure sensitive adhesive |
| Dimensions: | 76 x 76 mm (3 x 3 in) |
| Weight: | 1 g |
| ENVIRONMENT: | |
| Operating Temperature: | -40° to +85°C (-40° to 185°F) |
