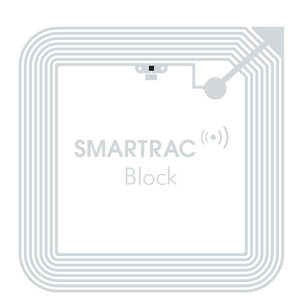

Avery Dennison Smartrac Block Lite NFC/HF RFID Paper Tag | NXP ICODE SLIX2
Designed for library and other media management applications, Smartrac Block Lite NFC/HF RFID Paper Tags provide best-in-class read range, optimal size, and performance in a compact, square package. Equipped with an extended user memory of 2,528 bits, Smartrac Block Lite tags provide excellent performance in all printed media products and applications, including self-check with stack reading capability, and EAS. Avery Dennison Smartrac Block Lite tags are ISO/IEC 15693 and ISO/IEC 18000-3 compliant, and follow NFC Forum Tag Type 5 specifications. Compatible with NFC based systems, Avery Dennison Smartrac Block Lite tags allows you the flexibility to encode based on desired Air Interface Protocol.
Data Sheet — Avery Dennison Smartrac Block Lite NFC/HF RFID Paper Tag | NXP ICODE SLIX2
Need help selecting the right tag? Check out our tag guide.
Why buy this tag?
Equipped with a best-in-class read range and optimal size, Avery Dennison Smartrac Block Lite NFC/HF RFID Paper Tags are top-performing tags for library and media management applications. Equipped with the NXP ICODE SLIX2 integrated circuit, these tags be encoded as NFC or HF based on your needs making them ideal for any solution within the High-Frequency band.
Features
- Top performance in library and media management applications.
- Optimal size and performance in compact square package.
- Excellent performance in all printed media products and applications including self-check with stack reading capability and EAS.
- Avery Dennison Smartrac book lifetime library warranty.
- Common applications: media and document management.
| Product Type: | Tag |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | ISO 15693, ISO 18000-3 Mode 1, NFC Forum Type 5 |
| Operating Frequency: | 13.56 MHz |
| IC Type: | NXP ICODE SLIX2 |
| Memory: | 2528 bits |
| EPC Memory Content: | Not guaranteed unique |
| Max Read Distance: | Testing recommended |
| Applicable Surface Materials: | Plastic, cardboard, glass |
| MECHANICAL: | |
| Tag Form Factor: | Paper Tag |
| Tag Materials: | Mid-gloss paper |
| Attachment Method: | Acrylic, water borne adhesive |
| Dimensions: | 50 x 50 mm (1.97 x 1.97 in) |
| Weight: | 1 g |
| ENVIRONMENT: | |
| Operating Temperature: | -40°C to 85°C (-40°F to 185°F) |
