Avery Dennison Smartrac AD Trap RFID Wet Inlay+ | M730

SKU:
3007986

Avery Dennison

UPC:
Product Type:
Tag
ELECTRICAL:

Air Interface Protocol:
EPC Class 1 Gen 2 (ISO 18000-63)
Operating Frequency:
Global (860-960 MHz)
IC Type:
Impinj M730
Memory:
EPC 128 Bits, User 0 Bits, TID 96/48 Bits
EPC Memory Content:
Not Published
Max Read Distance:
Testing recommended
Applicable Surface Materials:
Paper, Plastic, Cardboard, Glass
MECHANICAL:

Tag Form Factor:
Wet Inlay+
Tag Materials:
Printable PET (Thermal Transfer)
Attachment Method:
RA-2 Permanent UV Acrylic Hot Melt Adhesive
Dimensions:
11 x 25 mm (0.433 x 0.984 in)
Weight:
1 g
ENVIRONMENT:

Operating Temperature:
-40° to +85°C (-40° to +185°F)
fbt-product:
1316
fbt-product:
3475
fbt-product:
1665
atc-product:
2943
atc-product:
4619
atc-product:
2958
atc-product:
3509

Need a quantity that is not listed?

Contact us for a quote or alternative product.

View Full Description View Items Frequently Bought Together
$0.08
Adding to cart… The item has been added

Need a Quote?

Frequently Bought Together

Please choose options for all selected products

  • Choose Options
Specs

Description

*This product must be purchased at the Minimum Order Quantity (MOQ). The MOQ for this product is 100,000 tags. Contact us for details.*

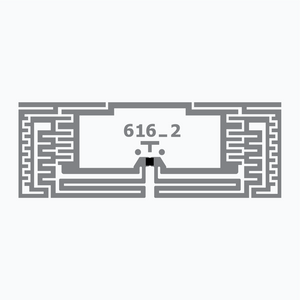

Avery Dennison Smartrac AD Trap RFID Wet Inlay+ | M730

The Avery Dennison Smartrac AD Trap RFID Wet Inlay+ is designed for item-level identification requiring a small footprint and excellent read performance. This compact and reliable tag is the perfect fit for small pharmaceutical and retail applications. It is compatible with the global GS1 UHF Gen2v2 standard and comes with an extra added layer of protection over the Impinj M730 IC.

Data Sheet — Avery Dennison Smartrac AD Trap RFID Wet Inlay+ | M730

Data Sheet -  Avery Dennison Smartrac AD Trap RFID Wet Inlay+ | M730

Need help selecting the right tag? Check out our tag guide.

Why buy this tag?

The Avery Dennison Smartrac AD Trap RFID Wet Inlay+ offers great RF-stability in a small form factor. This tag provides unmatched performance for small difficult-to-tag items making it an optimum solution for small item-level tagging.

Features

  • Global (860-960 MHz).
  • Works well in both near field and far field.
  • Provides excellent performance in far field with high dielectric materials such as glass vials and Printed Circuit Boards (PCBs).
  • Equipped with the Impinj M730 IC.
  • Wet inlay+ tag form factor which provides an extra layer of protection over the IC.
  • Compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management.
  • Ideally suited for small item-level retail and pharmaceutical applications.
  • Common applications: consumer electronics, healthcare, and apparel, item level inventory accuracy, and brand protection.
Product Type: Tag
ELECTRICAL:
Air Interface Protocol: EPC Class 1 Gen 2 (ISO 18000-63)
Operating Frequency: Global (860-960 MHz)
IC Type: Impinj M730
Memory: EPC 128 Bits, User 0 Bits, TID 96/48 Bits
EPC Memory Content: Not Published
Max Read Distance: Testing recommended
Applicable Surface Materials: Paper, Plastic, Cardboard, Glass
MECHANICAL:
Tag Form Factor: Wet Inlay+
Tag Materials: Printable PET (Thermal Transfer)
Attachment Method: RA-2 Permanent UV Acrylic Hot Melt Adhesive
Dimensions: 11 x 25 mm (0.433 x 0.984 in)
Weight: 1 g
ENVIRONMENT:
Operating Temperature: -40° to +85°C (-40° to +185°F)
