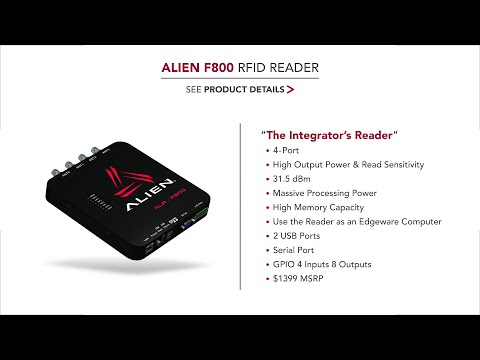

Alien F800 UHF RFID Reader
Alien® ALR-F800 is a best in class, self-optimizing Enterprise class reader that enables users to deploy best-in-class EPC Gen 2 RFID solutions for retail, supply chain, manufacturing, mobile asset tracking and asset management applications. Featuring a new fifth-generation reader architecture that intelligently adapts and configures based on its environment, the ALR-F800 provides the industry’s best Power over Ethernet (PoE) transmit power and performance.The ALR-F800 reader’s discrete architecture offers substantial improvements in function and performance over existing products in the market, enabling new levels of flexibility for system enhancements and future proofing. The improvements include industry standard MicroSD and USB slots for adding memory and additional capabilities such as cellular, Wi-Fi and Bluetooth. The F800 can accommodate large chunks of code, or entire applications loaded directly on the reader.
Data Sheet — Alien F800 UHF RFID Reader
Need help selecting the right reader? Check out our reader guide.
What's included?
If kit is NOT selected above:
- 1 ALR-F800 Alien Reader Unit Only (Country/region specific)
- 1-Year Manufacturer's Warranty
- Note: DC or Power-over-Ethernet Injector Power Supply NOT included.
If kit is selected above:
- 1 ALR-F800 Alien Reader Unit (Country/region specific)
- 1-Year Manufacturer's Warranty- Reader Only
- 1 PoE Injector
- 1 Power Cable for PoE Injector/Reader
- 2 Ethernet cables
- 1 USB B to A cable
Why buy this reader?
The ALR-F800 introduces a paradigm shift in RFID reader practicality. The reader provides the highest transmit power of any reader when operating from Power-over-Ethernet (PoE) power yet offers seamless switching between DC power and PoE power. This removes the need to decide about power source in order to obtain optimal reader performance. Just pick the most cost effective source for your application.
Features
- Industry standards I/O and firmware personality.
- Automatic inventory optimization.
- Plug and play with the ALR-9900+, the ALR-9650, and the ALR-9680.
- Load code and applications directly on the reader.
- High read rates for demanding applications.
- Easy RFID software integration.
- Antenna reflection cancellation optimization.
Information
Due to country specific regulations, power supplies must be obtained locally for Argentina, Japan, and South Korea.
Recommended Accessories
The following optional and replacement accessories are available for the Alien F800 RFID Reader. Contact us today for more detailed information about these accessories.
- I/O Mating Connector
- AC to DC Power Supply with Cord - US Version
- AC to DC Power Supply with Cord - EMEA Version
- PoE Injector Power Supply with Cord Pack - US Version
- PoE Injector Power Supply with Cord Pace - EMEA Version
- USB Cable (Type B to A)
- microSD 32GB Card
Video
| Product Type: | Fixed Reader |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C) |
| Operating Frequency: | UHF (860-960 MHz), region dependent |
| Transmit Power: | 31.5 dBm |
| Max Receive Sensitivity: | Not Published |
| Max Read Distance: | Not Published |
| Max Read Rate: | Not Published |
| Data Interface: | LAN, RS-232, USB Host, USB Console |
| GPIO: | 4 inputs, 8 outputs (1500mA capacity) - If kit is selected above |
| Power Source: | PoE or AC-DC 100-240 VAC Adapter |
| MECHANICAL: | |
| Antenna Ports: | 4 RP-TNC female Monostatic ports (connects to RP-TNC male) |
| Dimensions: | 190.5 x 200.66 x 27.94 mm (7.5 x 7.9 x 1.1 in) |
| Weight: | 0.85 kg (1.88 lbs) |
| ENVIRONMENT: | |
| IP Rating: | IP 53 |
| Operating Temperature: | -20° to +50°C (-4° to +122°F) |
| APPLICATION INTERFACE: | |
| Host API: | .NET, Java, Ruby APIs |
| Demo Software: | Alien Gateway |
