Description
*Subject to availability. Visit Vulcan RFID™ Fire UHF RFID White Wet Inlay (NXP UCODE 8) for an alternative product.*

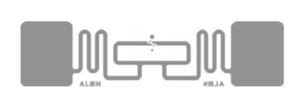

Alien Short RFID Clear Wet Inlay (ALN-9662, Higgs-3)
The Alien Technology ALN-9662 “Short” RFID inlay is a narrower version of its high performance, general purpose Squiggle® sibling. ALN-9662 inlays are World Tag compliant, enabling consistent operation across the diverse frequencies of the Americas, Europe, Middle East, Asia, and Africa. With its Higgs-3 core, the Short delivers excellent performance and a rich feature set including a 32-bit TID, a 64-bit Unique TID for authentication and serialization applications, an extensible EPC memory bank, 512-bits of user memory for distributed data applications, and password protected read and write support capabilities to prevent unauthorized viewing and modification of the tag’s data.
Data Sheet — Alien Short RFID Clear Wet Inlay (ALN-9662, Higgs-3)
Need help selecting the right tag? Check out our tag guide.
Why buy this tag?
Powered by Alien’s break-through Higgs3 UHF RFID IC and innovative Squiggle antenna design, the ALN-9662 delivers industry leading EPC Gen 2 performance and reliability in a narrower width than it’s bigger brother, the Squiggle.
Features
- Exceptional performance.
- EPC Gen 2 (v1.2.0) compliant.
- ISO/IEC 18000-6C compliant.
- Worldwide RFID UHF operation (840-960 MHz).
- Pre-programmed with a unique, unalterable 64-bit serial number (ideal for authentication).
- User Memory can be Block Perma-Locked.
- User Memory can be Read Password protected in 64-bit blocks, prohibiting unintended Reads without an access password.
- Supports all Mandatory and Optional Gen 2 commands including item level commands.
- Custom commands for high speed programming.
| Product Type: | Tag |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C) |
| Operating Frequency: | Global (840-960 MHz) |
| IC Type: | Alien Higgs-3 |
| Memory: | EPC 96 bits, User 512 bits, TID 64 bits |
| EPC Memory Content: | Unique, randomized number |
| Max Read Distance: | > 3.04 m (10 ft) |
| Applicable Surface Materials: | Wood, plastic, glass, cardboard |
| MECHANICAL: | |
| Tag Form Factor: | Clear wet inlay |
| Tag Materials: | Printable PET (Thermal Transfer) base without overlay |
| Recommended Ribbon: | Full Resin |
| Attachment Method: | General purpose adhesive |
| Dimensions: | 21.2 x 73.5 mm (0.835 x 2.89 in) |
| Weight: | < 1 g |
| ENVIRONMENT: | |
| Operating Temperature: | -40° to +70°C (-40° to +158°F) |
